32996 | AMP

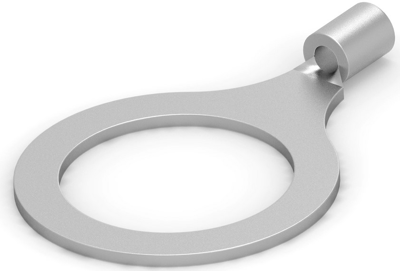

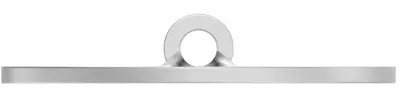

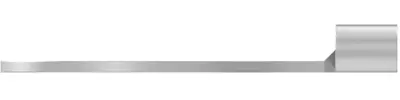

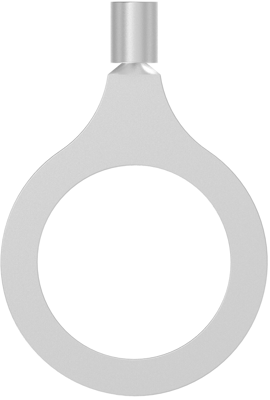

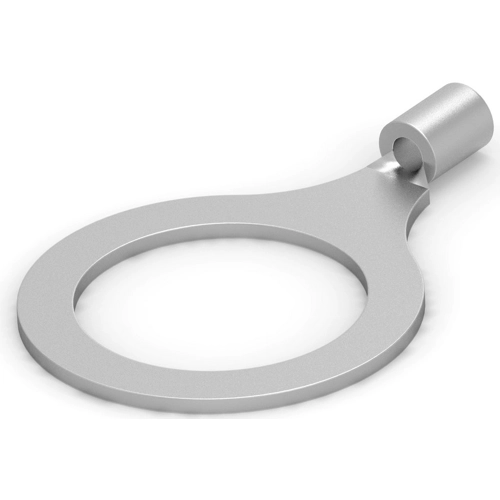

Uninsulated ring cable lug, 8.0 mm², AWG 8, 4.34 mm, M4, metal, 32996
Order No.: 39P8735
EAN: 4099889603583
MPN:
32996
Unit Price (€ / pc.)
1.1662 € *
Available in 5 Days: 4,884 pcs. - if ordered today
Total Price:
5.83 € *
Price list
Quantity
Price per unit*
5 pcs.
1.1662 €
10 pcs.
1.0829 €
25 pcs.
0.9996 €
50 pcs.
0.9163 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 32996, AMP
Shape Description: RING-049, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Inspection Slot: No, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 8 AWG, Wire Size: 8 mm², Wire Size: 13100 – 20800 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: 1.22 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| AWG cross-section | AWG 8 | |
| Version | ring cable lug | |
| Isolated | No | |
| Cable cross-section | 8.0 mm² | |
| Colour | metal | |
| Hole diameter | 4.34 mm | |
| max. operating temperature | 170 °C | |
| Thread size | M4 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
