329697 | AMP

Insulated ring cable lug, 3.0-5.2 mm², AWG 12 to 10, 3.68 mm, M3.5, yellow, 329697

Order No.: 39P3723
EAN: 4099889595437
MPN:
329697
Series: PIDG

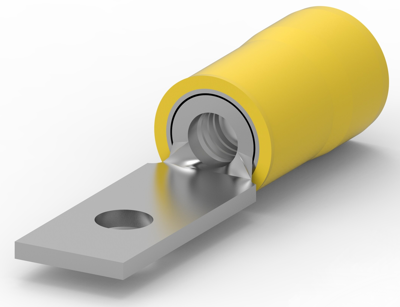

329697 AMP Cable Lugs Image 1

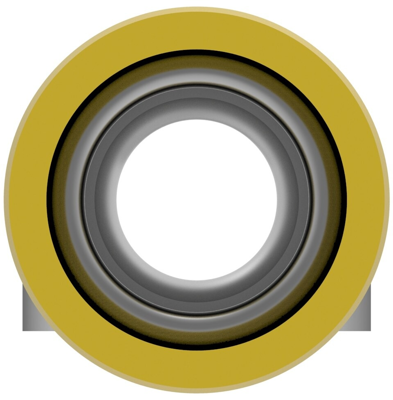

329697 AMP Cable Lugs Image 2

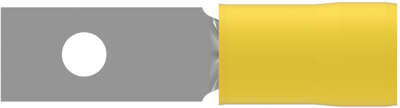

329697 AMP Cable Lugs Image 3

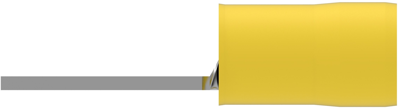

329697 AMP Cable Lugs Image 4
329697 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
1.3804 € *
Available in 5 Days: 27,424 pcs. - if ordered today
Total Price:
6.90 € *
Price list
Quantity
Price per unit*
5 pcs.
1.3804 €
10 pcs.
1.2733 €
25 pcs.
1.1900 €
50 pcs.
1.0829 €
*incl. VAT plus shipping costs
Subject to prior sale

Rectangular tongue terminal, 329697, AMP

Rectangular tongue terminal, Wire size: 12 - 10 AWG, Wire size: 3 - 5.2 mm², Wire size: 5180 - 13100 CMA, Body style: PIDG

Technical specifications
Filter Property Value
Material copper, tin-plated
AWG cross-section AWG 12 to 10
Version ring cable lug
Isolated Yes
Cable cross-section 3.0-5.2 mm²
Colour yellow
Hole diameter 3.68 mm
Material Insulation PA
max. operating temperature 105 °C
Thread size M3.5
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
