328976 | AMP

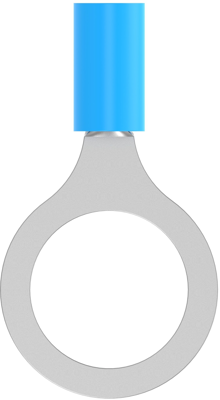

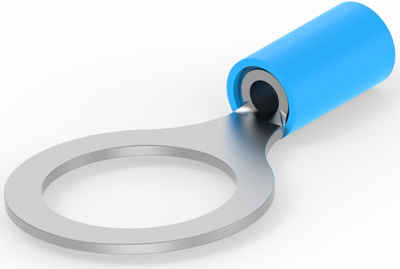

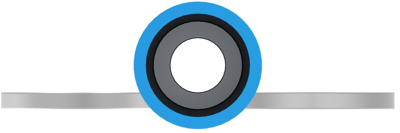

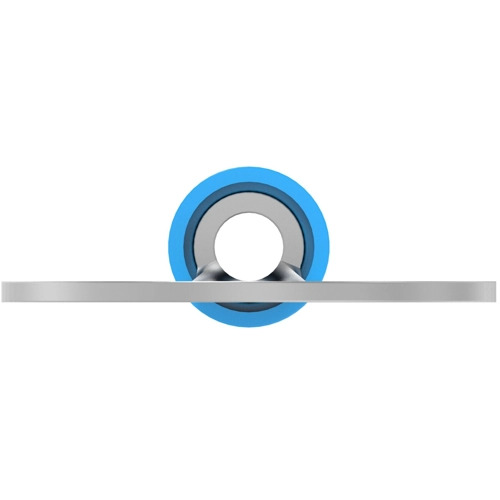

Insulated ring cable lug, 1.04-2.0 mm², AWG 16 to 14, 12.7 mm, M12, blue, 328976
Unit Price (€ / pc.)
2.6537 € *
Available: 219 pcs.
Available in 5 Days: 1,281 pcs. - if ordered today
Total Price:
2.65 € *
Price list
Quantity
Price per unit*
1 pcs.
2.6537 €
10 pcs.
2.4633 €
25 pcs.
2.2967 €
50 pcs.
2.0944 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cable lug, 328976, AMP
Terminal Features: Sheared, Ring & Spade Stud Size: 1/2,M12, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Stripe Color: Blue, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class I, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.04 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 12.7 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| max. operating temperature | 105 °C | |
| Colour | blue | |
| Cable cross-section | 1.04-2.0 mm² | |
| AWG cross-section | AWG 16 to 14 | |
| Material | copper, tin-plated | |
| Hole diameter | 12.7 mm | |
| Isolated | Yes | |
| Material Insulation | PA | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
