328970 | AMP

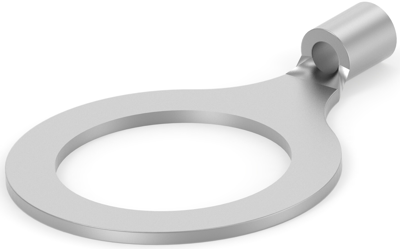

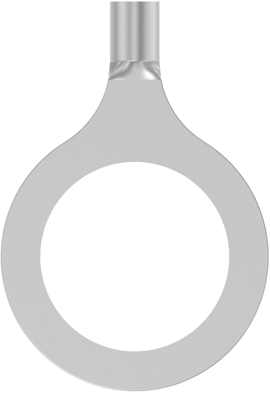

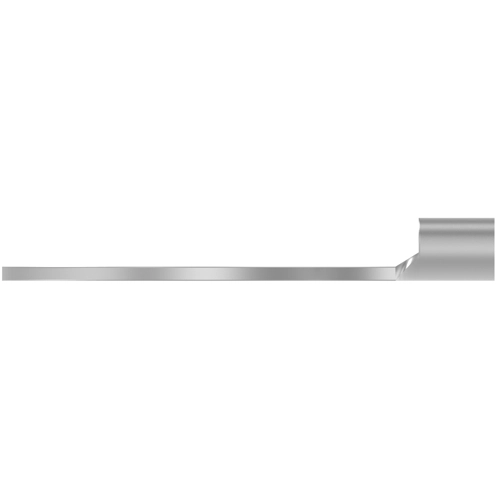

Uninsulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 12.7 mm, M12, metal, 328970
Order No.: 39P8302
EAN: 4099889600575
MPN:
328970
Unit Price (€ / pc.)
0.4165 € *
Available in 5 Days: 9,350 pcs. - if ordered today
Cable lug, 328970, AMP
Shape Description: RING-048, Ring & Spade Stud Size: 1/2,M12, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.214 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 22 – 16 AWG, Wire Size: .26 – 1.65 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 12.7 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece, Line: Budget
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 to 16 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 0.26-1.65 mm² | |
| Thread size | M12 | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C | |
| Version | ring cable lug | |
| Hole diameter | 12.7 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
