328657 | AMP

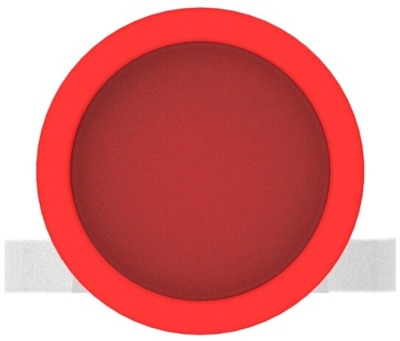

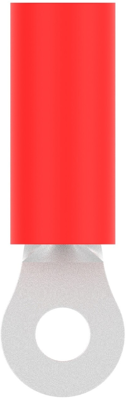

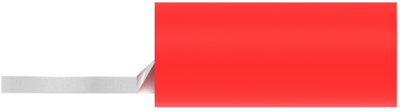

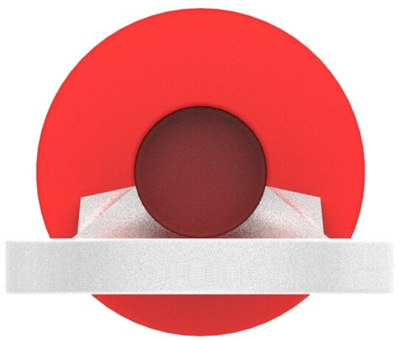

Insulated ring cable lug, 0.3-1.31 mm², AWG 22 to 16, 2.36 mm, M2, red, 328657
Unit Price (€ / pc.)
0.3332 € *
Standard delivery time from the manufacturer is: 43 Weeks
Cable lug, 328657, AMP
Shape Description: RING-041, Ring & Spade Stud Size: #2,M2, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: .6 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: .326 – 1.31 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 2.36 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | Yes | |
| Colour | red | |
| Hole diameter | 2.36 mm | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 0.3-1.31 mm² | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| Material Insulation | PA | |
| AWG cross-section | AWG 22 to 16 | |
| Thread size | M2 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
