328655 | AMP

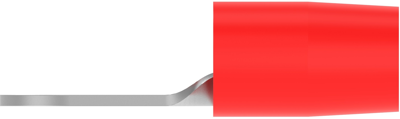

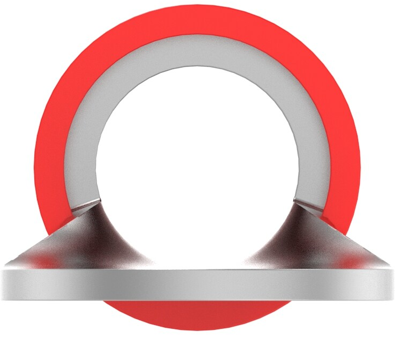

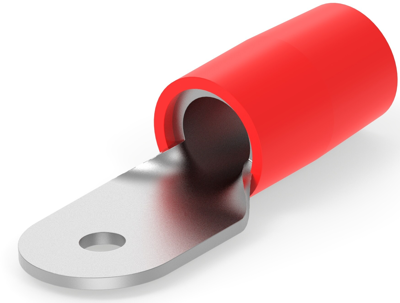

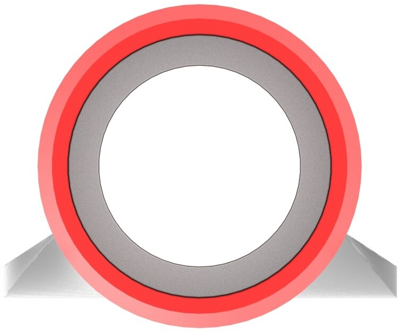

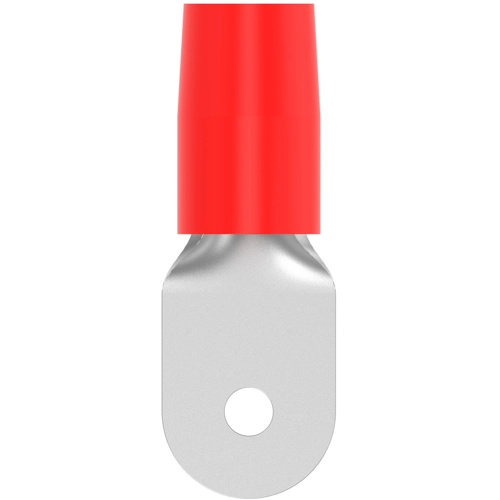

Insulated ring cable lug, 26.7-42.4 mm², AWG 2, 5 mm, red, 328655
Order No.: 39P3201
EAN: 4099889591552
MPN:
328655
Unit Price (€ / pc.)
4.4863 € *
Standard delivery time from the manufacturer is: 55 Weeks
Cable lug, 328655, AMP
Shape Description: RING-047, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Insulation Sleeve Color: Red, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 2 AWG, Wire Size: 26.7 – 42.4 mm², Wire Size: 52600 – 83700 CMA, Stud Diameter: 5 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 2 | |
| Hole diameter | 5 mm | |
| Colour | red | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 26.7-42.4 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
