328143 | AMP
Uninsulated rectangular contact tab with hole, 13-15 mm², AWG 6, 8.3 mm, M8, 328143
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
12.3998 € *
Available in 5 Days: 872 pcs. - if ordered today
Total Price:
12.40 € *
Price list
Quantity
Price per unit*
1 pcs.
12.3998 €
5 pcs.
11.7572 €
10 pcs.
10.9956 €
25 pcs.
10.0317 €
*incl. VAT plus shipping costs
Subject to prior sale

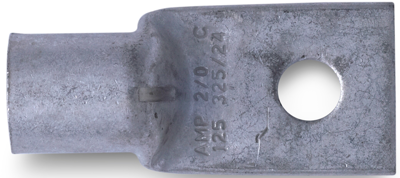

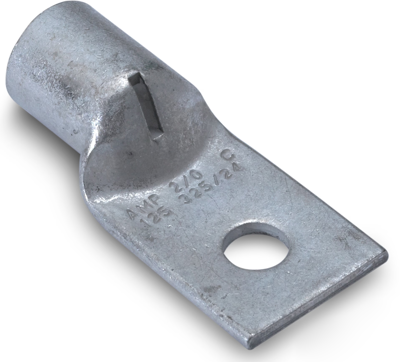

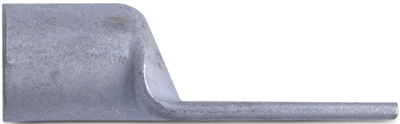

Rectangular cable lug, 328143, AMP
Ring terminal & Spade terminal, Rectangular tongue, 6 AWG Wire size, 13-15 mm² Wire size, 20800-33100 CMA Wire size.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | rectangular contact tab with hole | |
| Cable cross-section | 13-15 mm² | |
| AWG cross-section | AWG 6 | |
| Isolated | No | |
| Material | copper, tin-plated | |
| shrinkable tubing | No | |
| Hole diameter | 8.3 mm | |
| Thread size | M8 | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
