327717 | AMP

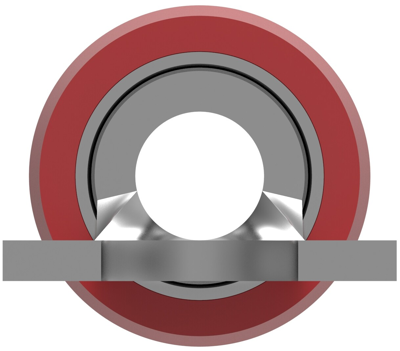

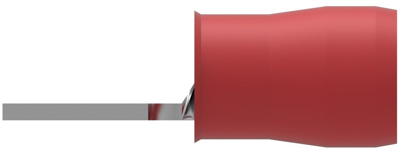

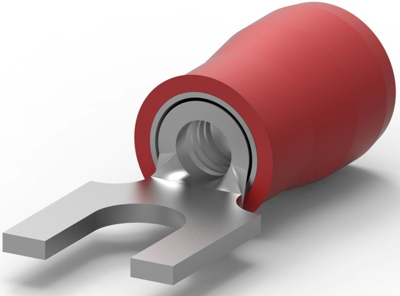

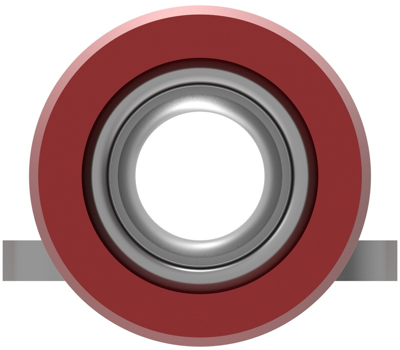

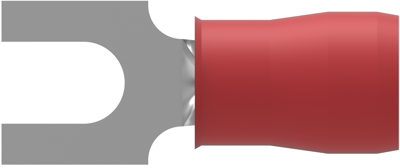

Insulated forked cable lug, 0.3-1.31 mm², AWG 22 to 16, M2.5, red, 327717
Unit Price (€ / pc.)
0.7616 € *
Available in 5 Days: 5,484 pcs. - if ordered today
Total Price:
3.81 € *
Price list
Quantity
Price per unit*
5 pcs.
0.7616 €
10 pcs.
0.7021 €
25 pcs.
0.6545 €
50 pcs.
0.5950 €
*incl. VAT plus shipping costs
Subject to prior sale
Fork cable lug, 327717, AMP
Shape Description: SPADE-020, Ring & Spade Stud Size: #4,M2.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: .969 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: .326 – 1.31 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.02 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material | copper, tin-plated | |
| AWG cross-section | AWG 22 to 16 | |
| Version | forked cable lug | |
| Isolated | Yes | |
| Cable cross-section | 0.3-1.31 mm² | |
| Colour | red | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Thread size | M2.5 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
