327287 | AMP
Uninsulated rectangular contact tab with hole, 177 mm², 14.27 mm, M12, 327287
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
38.0562 € *
Available in 5 Days: 451 pcs. - if ordered today
Total Price:
38.06 € *
Price list
Quantity
Price per unit*
1 pcs.
38.0562 €
2 pcs.
35.6048 €
5 pcs.
33.4509 €
10 pcs.
31.0947 €
*incl. VAT plus shipping costs
Subject to prior sale

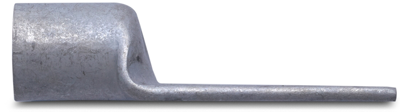

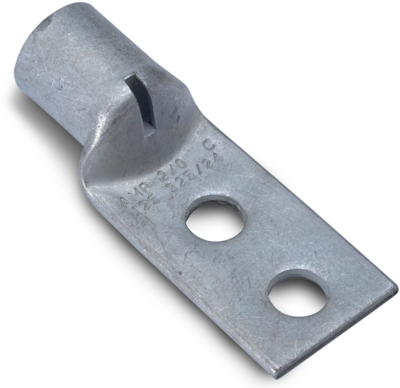

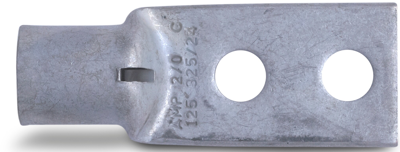

Rectangular cable lug, 327287, AMP
Ring terminal & Spade terminal, Rectangular tongue, 177 mm² Wire size, 325000-375000 CMA Wire size, Stud size 1/2/M12.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | rectangular contact tab with hole | |
| Cable cross-section | 177 mm² | |
| Isolated | No | |
| Material | copper, tin-plated | |
| shrinkable tubing | No | |
| Hole diameter | 14.27 mm | |
| Thread size | M12 | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
