326850 | AMP

Uninsulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 3.02 mm, M2.5, metal, 326850

Order No.: 39P8299
EAN: 4099889600568
MPN:
326850

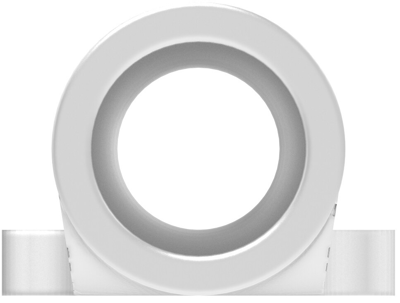

326850 AMP Cable Lugs Image 1

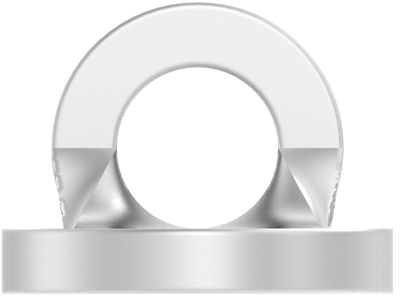

326850 AMP Cable Lugs Image 2

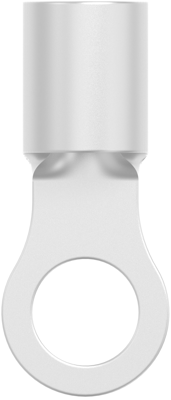

326850 AMP Cable Lugs Image 3

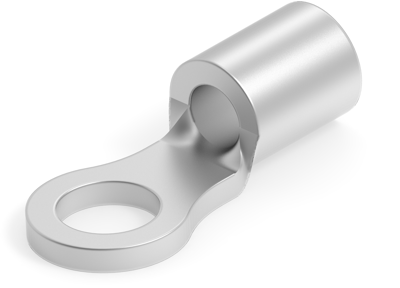

326850 AMP Cable Lugs Image 4

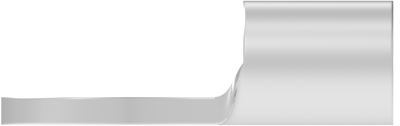

326850 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.1166 € *
Available: 0 pcs.
Leadtime: 11 Weeks **
Total Price:
2,332.40 € *
*incl. VAT plus shipping costs
**Subject to prior sale
20000 pcs.
0.1166 €

Cable lug, 326850, AMP

Shape Description: RING-048, Ring & Spade Stud Size: #4,M2.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: .329 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 22 – 16 AWG, Wire Size: .26 – 1.65 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.02 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece, Line: Budget

Technical specifications
Colour metal
Isolated No
AWG cross-section AWG 22 to 16
Hole diameter 3.02 mm
Cable cross-section 0.26-1.65 mm²
Version ring cable lug
Material copper, tin-plated
max. operating temperature 170 °C
Thread size M2.5
Logistics
Country of origin TH
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
