326405 | AMP
Uninsulated rectangular contact tab with hole, 13.08 mm, M12, 326405
Unit Price (€ / pc.)
101.1381 € *
Available in 5 Days: 50 pcs. - if ordered today

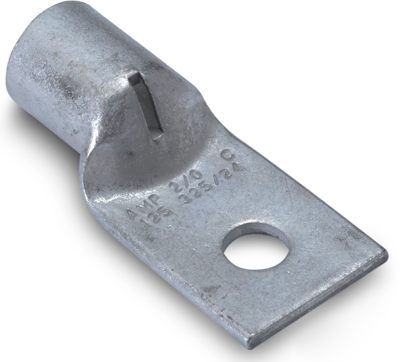

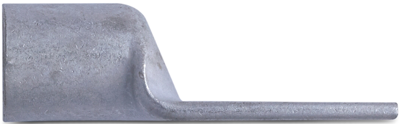

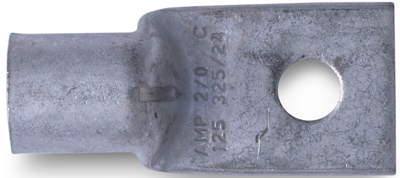

Rectangular cable lug, 326405, AMP
Ring terminal & Spade terminal, Rectangular tongue, 750000-850000 CMA Wire size, Stud size 1/2/M12, Stud diameter 13.08 mm.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| shrinkable tubing | No | |
| Hole diameter | 13.08 mm | |
| max. operating temperature | 105 °C | |
| Version | rectangular contact tab with hole | |
| Material | copper, tin-plated | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
