325805 | AMP

Uninsulated ring cable lug, 13.08 mm, metal, 325805

Order No.: 37P8274
EAN: 4099889590678
MPN:
325805
Series: AMPOWER

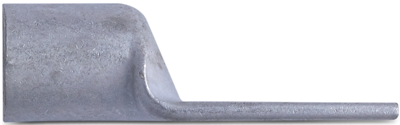

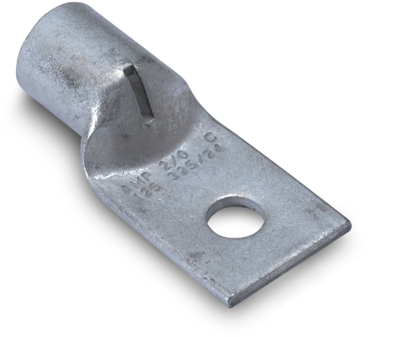

325805 AMP Cable Lugs Image 1
325805 AMP Cable Lugs Image 2
325805 AMP Cable Lugs Image 3
Image may differ
Unit Price (€ / pc.)
12.2332 € *
Standard delivery time from the manufacturer is: 14 Weeks
Total Price:
1,529.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
125 pcs.
12.2332 €

Rings and Spades, 325805, AMP

Ring & Spade Stud Size: 1/2,M12, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Ring & Spade Wire/Cable Type: Copper, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 79.1 g, Ring & Spade Plating Material: Tin, Military Part Class: Class II, Terminal & Splice Type: Rectangular Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 275000 – 325000 CMA, Stud Diameter: 13.08 mm, Tongue Thickness: 4.06 mm, Ring & Spade Overall Length: 68.33 mm, Barrel Inside Diameter: 19.25 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -55 – 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 25, Ring & Spade Packaging Method: Box, Comment: Electrodeposited Tin Plate per MIL-T-10727.

Technical specifications
Filter Property Value
Material copper, tin-plated
max. operating temperature 105 °C
Version ring cable lug
Hole diameter 13.08 mm
Isolated No
Colour metal
Logistics
Property Value
Country of origin TH
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
