325305 | AMP

Uninsulated rectangular contact tab with hole, 50-60 mm², 13.08 mm, M12, 325305

Order No.: 71P8011
EAN: 4099891603779
MPN:
325305
Series: AMPOWER

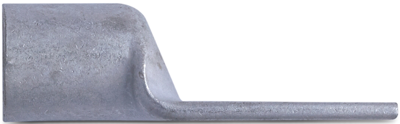

325305 AMP Cable Lugs Image 1

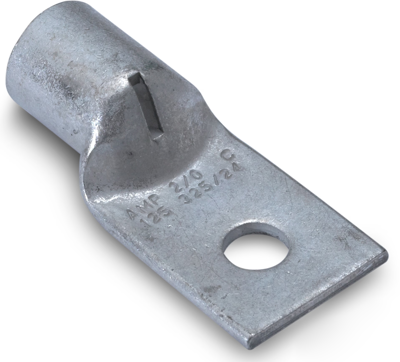

325305 AMP Cable Lugs Image 2

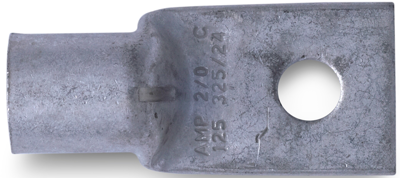

325305 AMP Cable Lugs Image 3
Image may differ
Unit Price (€ / pc.)
17.4335 € *
Available in 5 Days: 531 pcs. - if ordered today
Total Price:
17.43 € *
Price list
Quantity
Price per unit*
1 pcs.
17.4335 €
5 pcs.
16.5410 €
10 pcs.
15.4700 €
25 pcs.
14.1015 €
*incl. VAT plus shipping costs
Subject to prior sale

Rectangular cable lug, 325305, AMP

Ring terminal & Spade terminal, Rectangular tongue, 0 AWG Wire size, 50-60 mm² Wire size, 83700-119500 CMA Wire size.

Technical specifications
Filter Property Value
shrinkable tubing No
Material copper, tin-plated
max. operating temperature 105 °C
Version rectangular contact tab with hole
Hole diameter 13.08 mm
Thread size M12
Isolated No
Cable cross-section 50-60 mm²
Logistics
Property Value
Country of origin US
Customs tariff number 85369010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
