325202 | AMP
Uninsulated rectangular contact tab with hole, 34-35 mm², AWG 2, 8.3 mm, M8, 325202
Unit Price (€ / pc.)
26.1324 € *
Available in 5 Days: 222 pcs. - if ordered today
Total Price:
26.13 € *
Price list
Quantity
Price per unit*
1 pcs.
26.1324 €
5 pcs.
24.7877 €
10 pcs.
23.1812 €
25 pcs.
21.1344 €
*incl. VAT plus shipping costs
Subject to prior sale

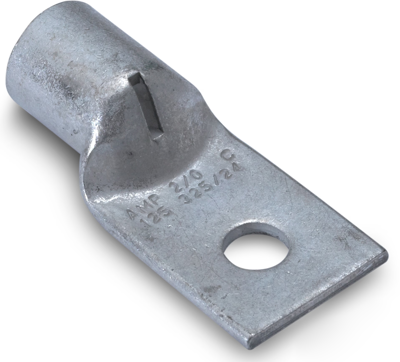

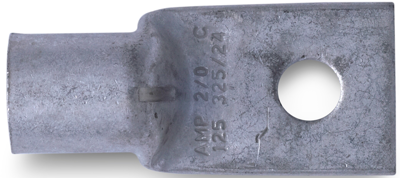

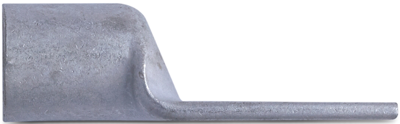

Rectangular cable lug, 325202, AMP
Ring terminal & Spade terminal, Rectangular tongue, 2 AWG Wire size, 34-35 mm² Wire size, 52600-83700 CMA Wire size.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | rectangular contact tab with hole | |
| max. operating temperature | 105 °C | |
| shrinkable tubing | No | |
| Cable cross-section | 34-35 mm² | |
| AWG cross-section | AWG 2 | |
| Material | copper, tin-plated | |
| Hole diameter | 8.3 mm | |
| Isolated | No | |
| Thread size | M8 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
