325154 | AMP
Uninsulated ring cable lug, 2.62-6.64 mm², AWG 12 to 10, 5 mm, 325154
Unit Price (€ / pc.)
8.1872 € *
Available in 5 Days: 868 pcs. - if ordered today

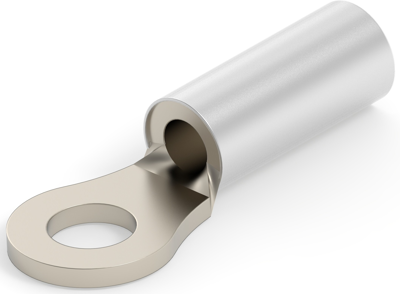

Ring cable lug, 325154, AMP
Ring terminal and Spade terminal, Ring tongue, 12-10 AWG wire size, 2.62-6.64 mm² wire size, 5180-13100 CMA wire size.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12 to 10 | |
| Hole diameter | 5 mm | |
| shrinkable tubing | No | |
| max. operating temperature | 343 °C | |
| Cable cross-section | 2.62-6.64 mm² | |
| Material | copper, nickel-plated | |
| Version | ring cable lug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
