325034 | AMP

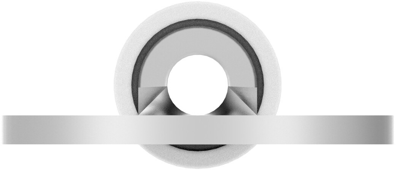

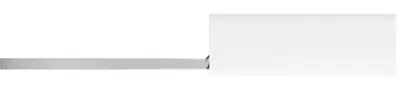

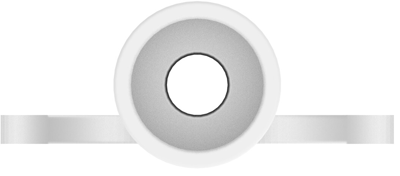

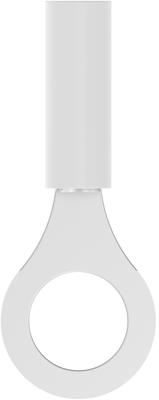

Insulated ring cable lug, 1.25-2.0 mm², AWG 16 to 14, 6.73 mm, M6, black, 325034
Order No.: 39P3587
EAN: 4099889594263
MPN:
325034
Unit Price (€ / pc.)
0.7378 € *
Available in 5 Days: 1,220 pcs. - if ordered today
Total Price:
221.34 € *
Price list
Quantity
Price per unit*
300 pcs.
0.7378 €
650 pcs.
0.7140 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 325034, AMP
Shape Description: RING-041, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: 1.522 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16 to 14 | |
| Hole diameter | 6.73 mm | |
| Colour | black | |
| Thread size | M6 | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 1.25-2.0 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
