324597 | AMP

Insulated forked cable lug, 0.12-0.4 mm², AWG 26 to 22, M2, yellow, 324597

Order No.: 39P3761
EAN: 4099889595789
MPN:
324597
Series: PIDG

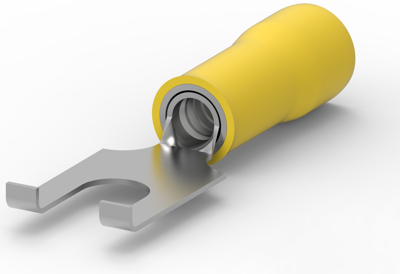

324597 AMP Cable Lugs Image 1

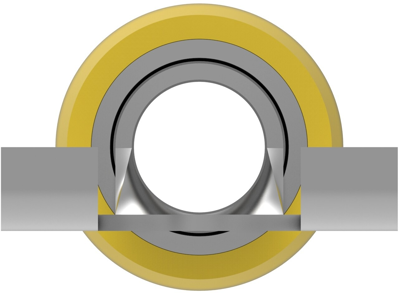

324597 AMP Cable Lugs Image 2

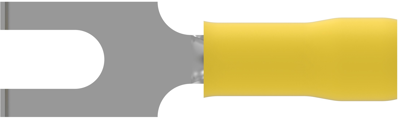

324597 AMP Cable Lugs Image 3

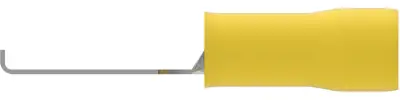

324597 AMP Cable Lugs Image 4
Image may differ
Unit Price (€ / pc.)
2.4752 € *
Available in 5 Days: 3,127 pcs. - if ordered today
Total Price:
2.48 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
2.4752 €

Fork cable lug, 324597, AMP

Shape Description: SPADE-024, Ring & Spade Stud Size: #2,M2, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: .16 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Spade Flange Tongue, Ring & Spade Terminal Orientation: Flanged,Straight, Wire Insulation Support: With, Wire Size: 26 – 22 AWG, Wire Size: .12 – .4 mm², Wire Size: 202 – 810 CMA, Stud Diameter: 2.36 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Filter Property Value
Version forked cable lug
Cable cross-section 0.12-0.4 mm²
max. operating temperature 105 °C
Material Insulation PA
Isolated Yes
Material copper, tin-plated
AWG cross-section AWG 26 to 22
Colour yellow
Thread size M2
Logistics
Property Value
Country of origin JP
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
