32442 | AMP

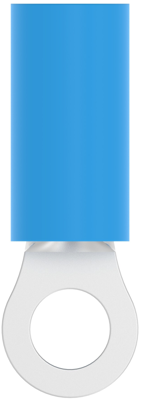

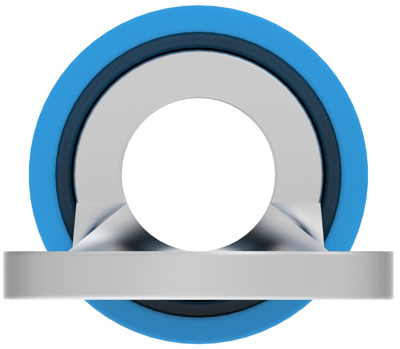

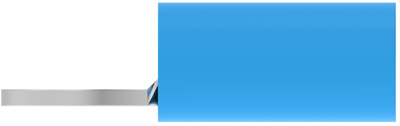

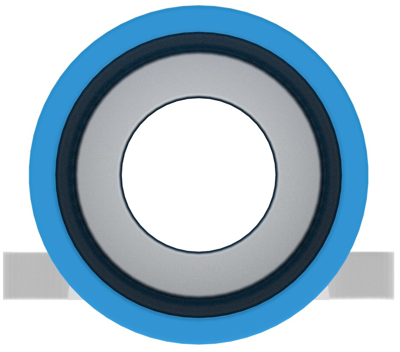

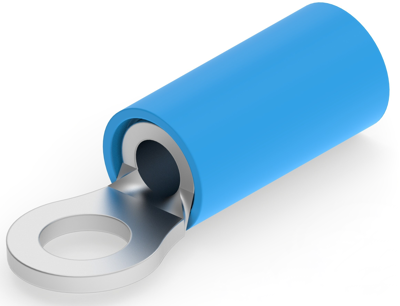

Insulated ring cable lug, 1.0-2.5 mm², AWG 16 to 14, 3.7 mm, M3.5, blue, 32442
Unit Price (€ / pc.)
0.357 € *
Available in 5 Days: 9,745 pcs. - if ordered today
Cable lug, 32442, AMP
Shape Description: RING-041, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Inspection Slot: No, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1 – 2.5 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 3.7 mm, Tongue Thickness: 1.02 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | blue | |
| Hole diameter | 3.7 mm | |
| Cable cross-section | 1.0-2.5 mm² | |
| Version | ring cable lug | |
| Isolated | Yes | |
| Thread size | M3.5 | |
| max. operating temperature | 105 °C | |
| Material Insulation | PVC | |
| AWG cross-section | AWG 16 to 14 | |
| Material | copper, tin-plated |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
