324187 | AMP

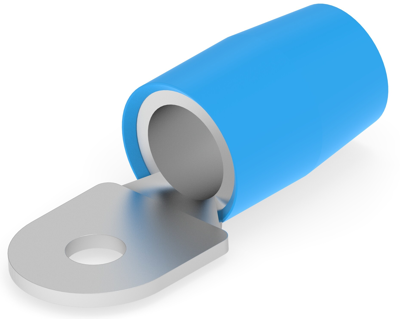

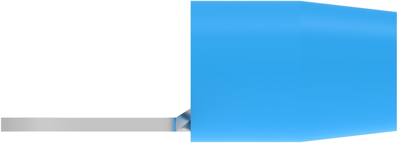

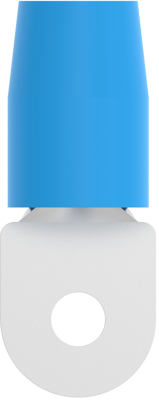

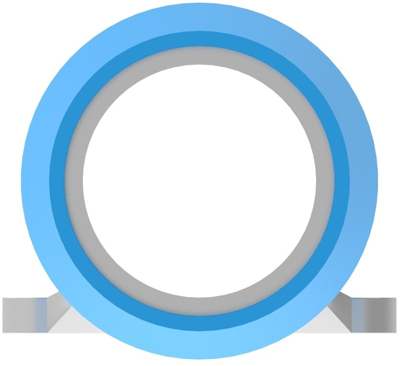

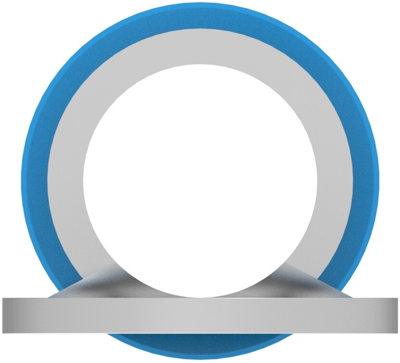

Insulated ring cable lug, 96.3-117 mm², AWG 4, 9.91 mm, blue, 324187
Order No.: 39P3213
EAN: 4099889591644
MPN:
324187
Unit Price (€ / pc.)
29.0003 € *
Available in 5 Days: 50 pcs. - if ordered today
Cable lug, 324187, AMP
Shape Description: RING-047, Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Stripe Color: Blue, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 0000 AWG, Wire Size: 96.3 – 117 mm², Wire Size: 190000 – 231100 CMA, Stud Diameter: 9.91 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Material Insulation | PA | |
| Version | ring cable lug | |
| Hole diameter | 9.91 mm | |
| max. operating temperature | 105 °C | |
| Isolated | Yes | |
| Cable cross-section | 96.3-117 mm² | |
| Colour | blue | |
| Material | copper, tin-plated | |
| AWG cross-section | AWG 4 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
