324055 | AMP

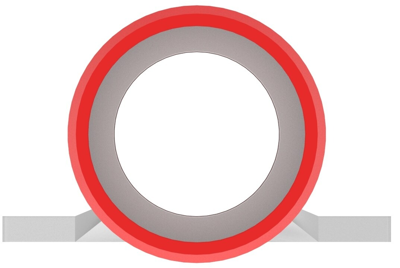

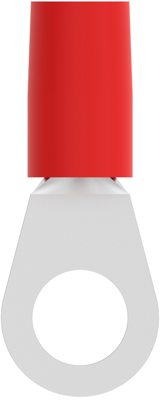

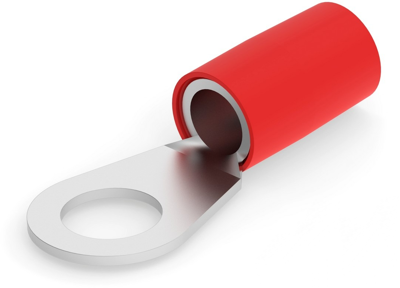

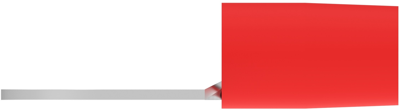

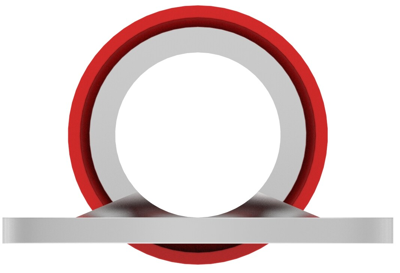

Insulated ring cable lug, 26.7-42.4 mm², AWG 2, 13.08 mm, M12, red, 324055
Order No.: 39P3199
EAN: 4099889591538
MPN:
324055
Unit Price (€ / pc.)
17.6001 € *
Available in 5 Days: 874 pcs. - if ordered today
Total Price:
17.60 € *
Price list
Quantity
Price per unit*
1 pcs.
17.6001 €
10 pcs.
16.3387 €
25 pcs.
15.2558 €
50 pcs.
13.8635 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 324055, AMP
Shape Description: RING-047, Ring & Spade Stud Size: 1/2,M12, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Insulation Sleeve Color: Red, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 2 AWG, Wire Size: 26.7 – 42.4 mm², Wire Size: 52600 – 83700 CMA, Stud Diameter: 13.08 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| Cable cross-section | 26.7-42.4 mm² | |
| max. operating temperature | 105 °C | |
| Material Insulation | PA | |
| Isolated | Yes | |
| Hole diameter | 13.08 mm | |
| Material | copper, tin-plated | |
| AWG cross-section | AWG 2 | |
| Colour | red | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
