324054 | AMP

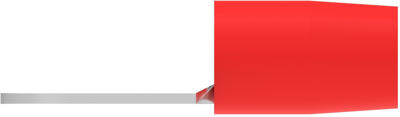

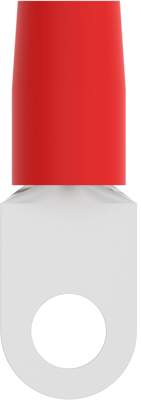

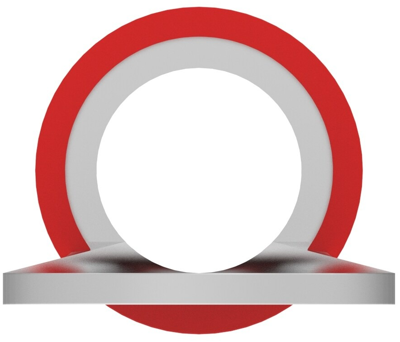

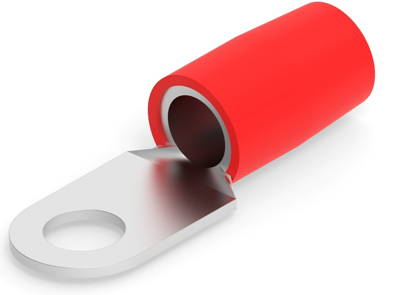

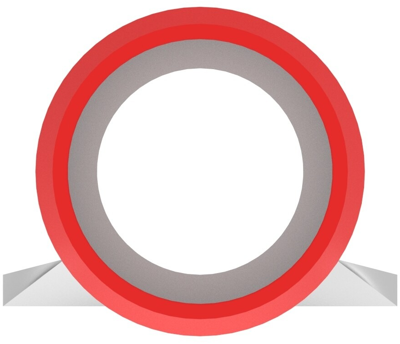

Insulated ring cable lug, 26.7-42.4 mm², AWG 2, 9.91 mm, red, 324054
Order No.: 39P3202
EAN: 4099889591569
MPN:
324054
Unit Price (€ / pc.)
7.7469 € *
Available in 5 Days: 4,100 pcs. - if ordered today
Total Price:
7.75 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7469 €
5 pcs.
7.3423 €
10 pcs.
6.8663 €
25 pcs.
6.2594 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cable lug, 324054, AMP
Shape Description: RING-047, Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Stripe Color: Red, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 2 AWG, Wire Size: 26.7 – 42.4 mm², Wire Size: 52600 – 83700 CMA, Stud Diameter: 9.91 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Cable cross-section | 26.7-42.4 mm² | |
| Isolated | Yes | |
| max. operating temperature | 105 °C | |
| Material | copper, tin-plated | |
| Colour | red | |
| Version | ring cable lug | |
| Material Insulation | PA | |
| Hole diameter | 9.91 mm | |
| AWG cross-section | AWG 2 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
