324048 | AMP

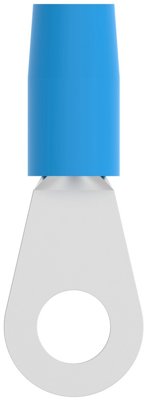

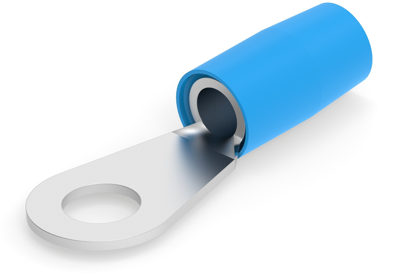

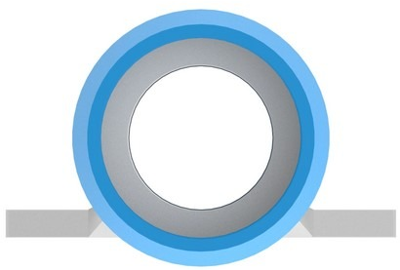

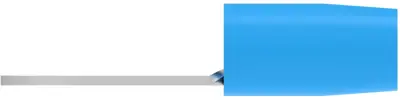

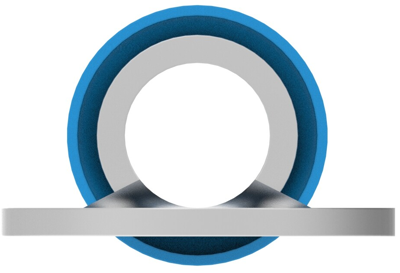

Insulated ring cable lug, 10.5-16.8 mm², AWG 6, 8.33 mm, M8, blue, 324048
Order No.: 39P3217
EAN: 4099889591651
MPN:
324048
Unit Price (€ / pc.)
3.5938 € *
Available in 5 Days: 2,370 pcs. - if ordered today
Total Price:
3.59 € *
Price list
Quantity
Price per unit*
1 pcs.
3.5938 €
10 pcs.
3.3320 €
25 pcs.
3.1178 €
50 pcs.
2.8322 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 324048, AMP
Shape Description: RING-047, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Stripe Color: Blue, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 6 AWG, Wire Size: 10.5 – 16.8 mm², Wire Size: 20800 – 33100 CMA, Stud Diameter: 8.33 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 6 | |
| Hole diameter | 8.33 mm | |
| Colour | blue | |
| Thread size | M8 | |
| Material Insulation | PA | |
| max. operating temperature | 105 °C | |
| Cable cross-section | 10.5-16.8 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
