323913 | AMP

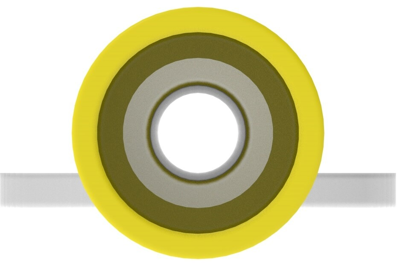

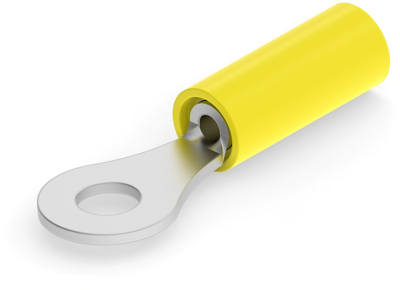

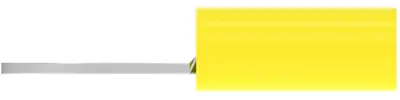

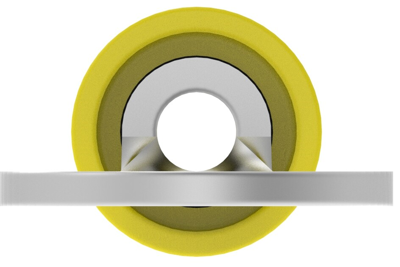

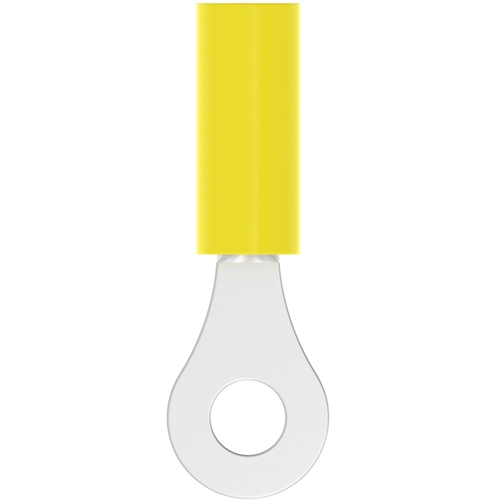

Insulated ring cable lug, 0.1-0.41 mm², AWG 26 to 22, 2.36 mm, M2, yellow, 323913
Unit Price (€ / pc.)
1.0234 € *
Available in 5 Days: 877 pcs. - if ordered today
Total Price:
5.12 € *
Price list
Quantity
Price per unit*
5 pcs.
1.0234 €
10 pcs.
0.9520 €
25 pcs.
0.8806 €
50 pcs.
0.7973 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring cable lug, 323913, AMP
Shape Description: RING-041, Ring & Spade Stud Size: #2,M2, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: 0.288 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 26 – 22 AWG, Wire Size: 0.1 -0.41 mm², Wire Size: 202 – 810 CMA, Stud Diameter: 2.36 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 150 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 4000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Hole diameter | 2.36 mm | |
| Cable cross-section | 0.1-0.41 mm² | |
| Thread size | M2 | |
| AWG cross-section | AWG 26 to 22 | |
| Isolated | Yes | |
| max. operating temperature | 150 °C | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Colour | yellow | |
| Material Insulation | PA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
