323868 | AMP

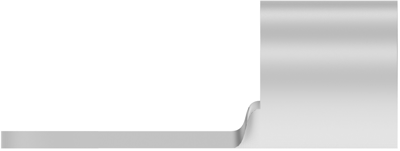

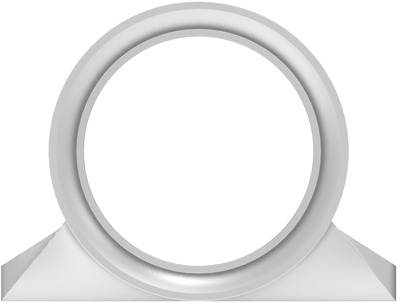

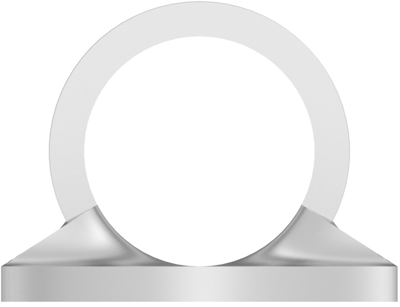

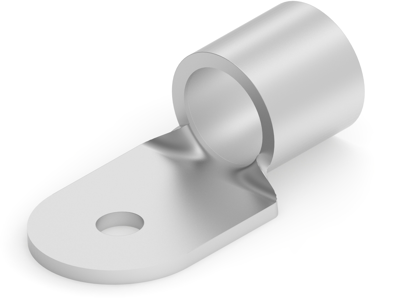

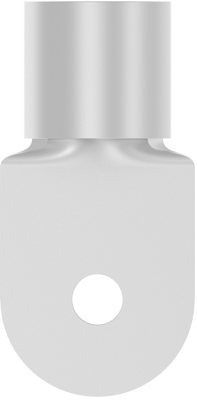

Uninsulated ring cable lug, 76.3-96.3 mm², AWG 5, 6.73 mm, M6, metal, 323868
Order No.: 39P8266
EAN: 4099889600346
MPN:
323868
Unit Price (€ / pc.)
18.3498 € *
Available in 5 Days: 825 pcs. - if ordered today
Total Price:
18.35 € *
Price list
Quantity
Price per unit*
1 pcs.
18.3498 €
10 pcs.
17.0408 €
25 pcs.
15.9103 €
50 pcs.
14.4585 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 323868, AMP
Shape Description: RING-051, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 24 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 000 AWG, Wire Size: 76.3 – 96.3 mm², Wire Size: 150500 – 190000 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| max. operating temperature | 170 °C | |
| Colour | metal | |
| Cable cross-section | 76.3-96.3 mm² | |
| AWG cross-section | AWG 5 | |
| Material | copper, tin-plated | |
| Hole diameter | 6.73 mm | |
| Isolated | No | |
| Thread size | M6 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
