323160 | AMP

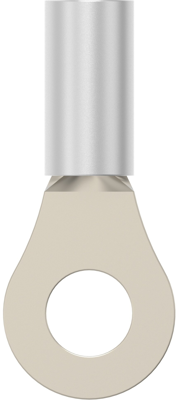

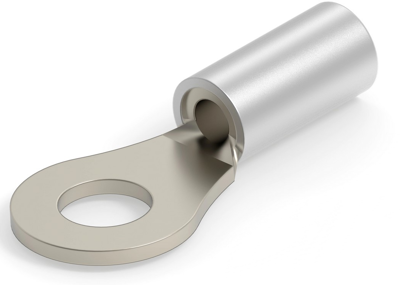

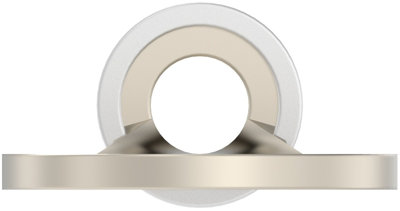

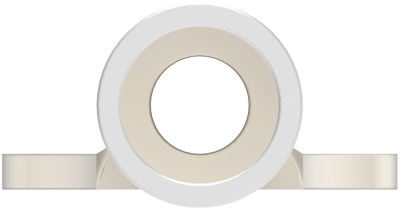

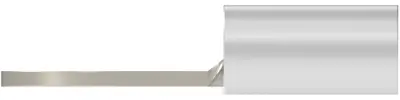

Uninsulated ring cable lug, 1.04-2.62 mm², AWG 16 to 14, 4.34 mm, M4, metal, 323160
Order No.: 39P2225
EAN: 4099889590975
MPN:
323160
Unit Price (€ / pc.)
2.38 € *
Standard delivery time from the manufacturer is: 43 Weeks
Cable lug, 323160, AMP
Shape Description: RING-085, Ring & Spade Stud Size: #8,M4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.072 g, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 16 – 14 AWG, Wire Size: 1.04 – 2.62 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 4.34 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 343 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 16 to 14 | |
| Hole diameter | 4.34 mm | |
| Colour | metal | |
| Thread size | M4 | |
| max. operating temperature | 343 °C | |
| Cable cross-section | 1.04-2.62 mm² | |
| Material | copper, nickel-plated | |
| Version | ring cable lug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
