323151 | AMP

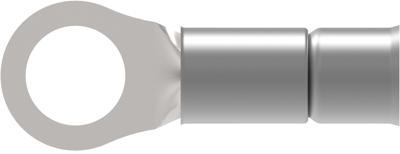

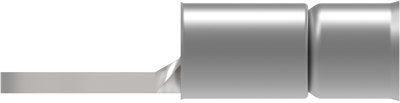

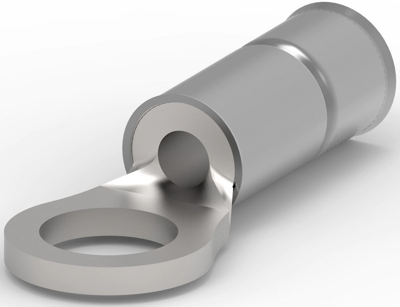

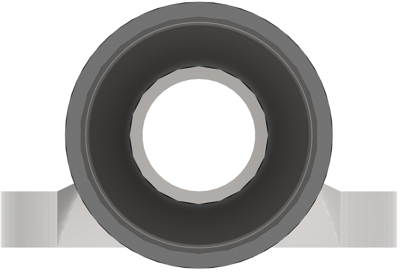

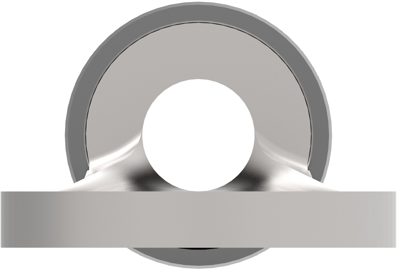

Uninsulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 3.68 mm, M3.5, metal
Order No.: 39P2202
EAN: 4099889590777
MPN:
323151
Unit Price (€ / pc.)
1.5470 € *
Available: 0 pcs.
Available in 5 Days: 30,872 pcs.
Leadtime: 1 Week **
Total Price:
1.55 € *
Price list
Quantity
Price per unit*
60 pcs.
1.5470 €
300 pcs.
1.5113 €
*incl. VAT plus shipping costs
**Subject to prior sale
Cable lug, 323151, AMP
Shape Description: RING-085, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: .723 g, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: .26 – 1.65 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 343 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | ring cable lug | |
| AWG cross-section | AWG 22 to 16 | |
| Colour | metal | |
| Thread size | M3.5 | |
| Isolated | No | |
| Cable cross-section | 0.26-1.65 mm² | |
| Hole diameter | 3.68 mm | |
| Material | copper, nickel-plated | |
| max. operating temperature | 343 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369095 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
