323136 | AMP

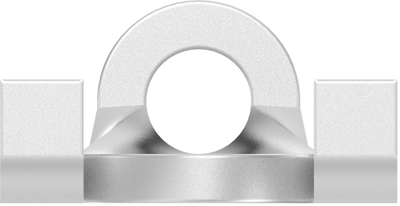

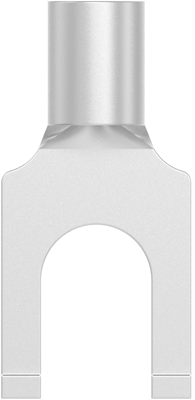

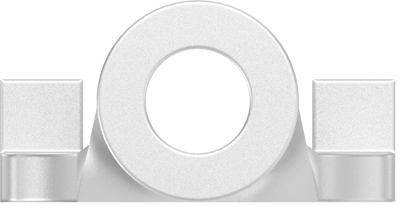

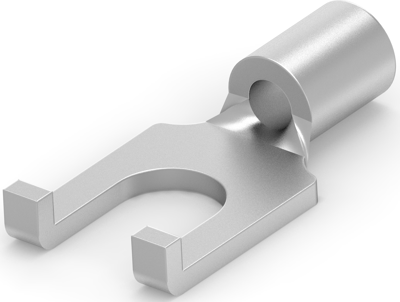

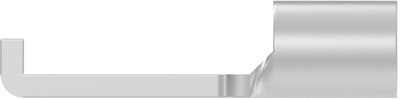

Uninsulated forked cable lug, 0.26-1.65 mm², AWG 22 to 16, 3.68 mm, M3.5, 323136
Order No.: 71P7904
MPN:
323136
Unit Price (€ / pc.)
0.3094 € *
Available in 5 Days: 7,228 pcs. - if ordered today
Spade cable lug, 323136, AMP
Ring terminal & Spade terminal, Spade Tongue, 22-16 AWG Wire size, 0.26-1.65 mm² Wire size, 509-3260 CMA Wire size, Stud size #6/M3.5
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Isolated | No | |
| Version | forked cable lug | |
| max. operating temperature | 170 °C | |
| Hole diameter | 3.68 mm | |
| shrinkable tubing | No | |
| AWG cross-section | AWG 22 to 16 | |
| Thread size | M3.5 | |
| Material | copper, tin-plated | |
| Cable cross-section | 0.26-1.65 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
