323008 | AMP

Insulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 3.68 mm, M3.5, red, 323008

Order No.: 39P3404
EAN: 4099889592917
MPN:
323008
Series: PIDG

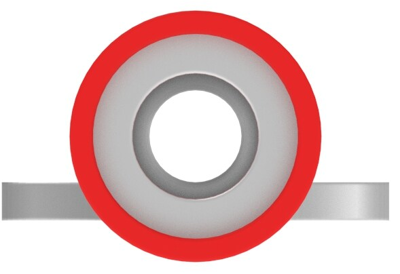

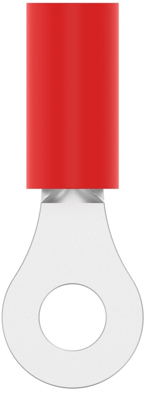

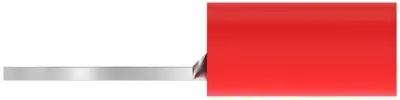

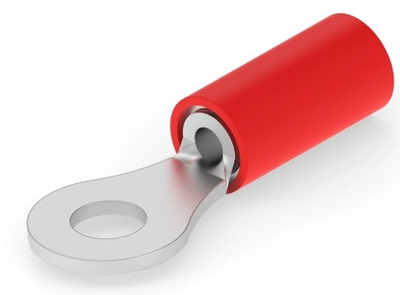

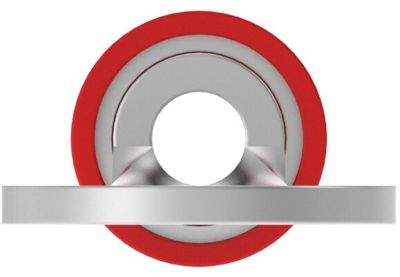

323008 AMP Cable Lugs Image 1
323008 AMP Cable Lugs Image 2
323008 AMP Cable Lugs Image 3
323008 AMP Cable Lugs Image 4
323008 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
0.8925 € *
Available in 5 Days: 603 pcs. - if ordered today
Total Price:
0.89 € *
Price list
Quantity
Price per unit*
1 pcs.
0.8925 €
10 pcs.
0.8092 €
50 pcs.
0.7259 €
100 pcs.
0.6545 €
*incl. VAT plus shipping costs
Subject to prior sale

Cable lug, 323008, AMP

Shape Description: RING-041, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Terminal Angle: Straight, Voltage (Max): 300 V, Weight per Piece: .787 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: .26 – 1.65 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: .79 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece

Technical specifications
Thread size M3.5
max. operating temperature 105 °C
Hole diameter 3.68 mm
AWG cross-section AWG 22 to 16
Colour red
Cable cross-section 0.26-1.65 mm²
Version ring cable lug
Material Insulation PA
Isolated Yes
Material copper, tin-plated
Logistics
Customs tariff number 85369095
Country of origin IN
Compliance
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
