322996 | AMP

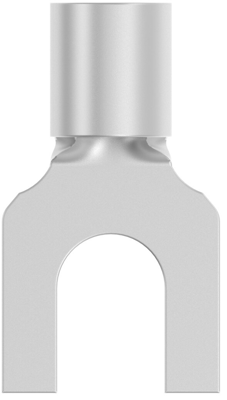

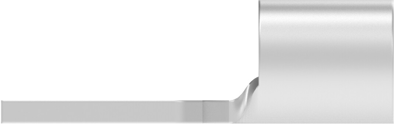

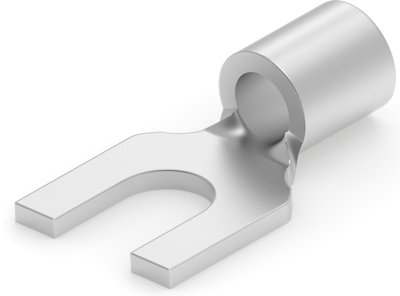

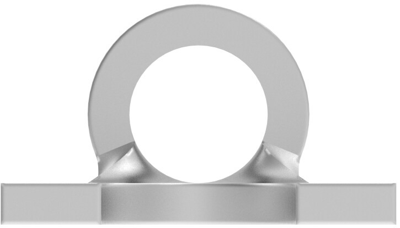

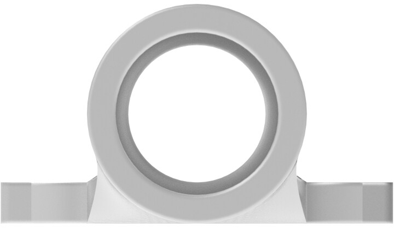

Uninsulated forked cable lug, 1.04-2.62 mm², AWG 16 to 14, M3.5, metal
Order No.: 39P8749
EAN: 4099889603729
MPN:
322996
Unit Price (€ / pc.)
0.2904 € *
Available: 0 pcs.
Available in 5 Days: 8,200 pcs.
Leadtime: 1 Week **
Total Price:
0.29 € *
Price list
Quantity
Price per unit*
300 pcs.
0.2904 €
1800 pcs.
0.2356 €
*incl. VAT plus shipping costs
**Subject to prior sale
Fork cable lug, 322996, AMP
Shape Description: SPADE-023, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Terminal Angle: Straight, Weight per Piece: .539 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 16 – 14 AWG, Wire Size: 1.04 – 2.62 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Version | forked cable lug | |
| AWG cross-section | AWG 16 to 14 | |
| Colour | metal | |
| Thread size | M3.5 | |
| Isolated | No | |
| Cable cross-section | 1.04-2.62 mm² | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
