322906 | AMP

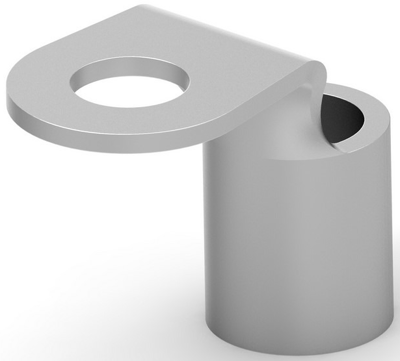

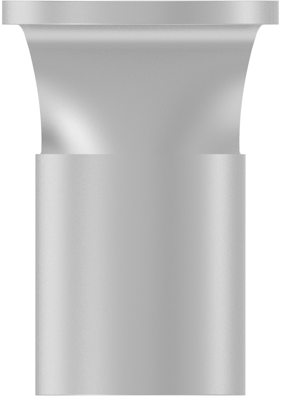

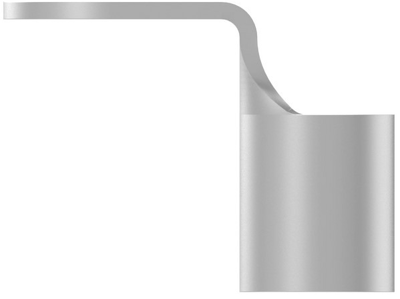

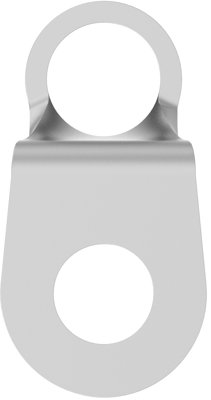

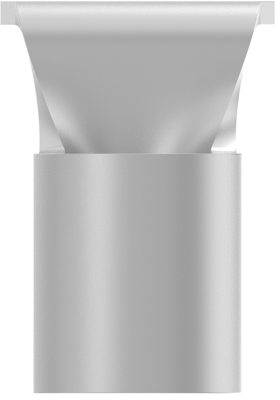

Uninsulated ring cable lug, 42.4-60.6 mm², AWG 1, 9.91 mm, metal, 322906
Order No.: 39P8285
EAN: 4099889600490
MPN:
322906
Unit Price (€ / pc.)
6.4141 € *
Available in 5 Days: 534 pcs. - if ordered today
Cable lug, 322906, AMP
Shape Description: RING-091, Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: 90°, Weight per Piece: 21.056 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 0 AWG, Wire Size: 42.4 – 60.6 mm², Wire Size: 83700 – 119500 CMA, Stud Diameter: 9.91 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 1 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 42.4-60.6 mm² | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C | |
| Version | ring cable lug | |
| Hole diameter | 9.91 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369040 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
