322798 | AMP

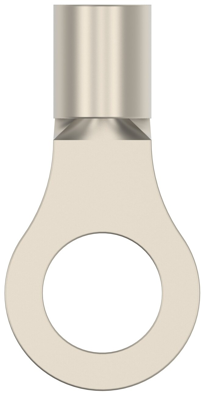

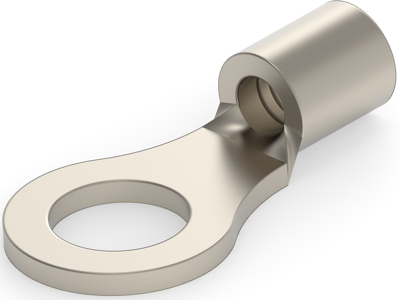

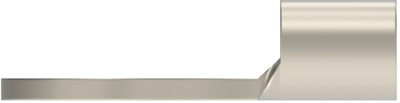

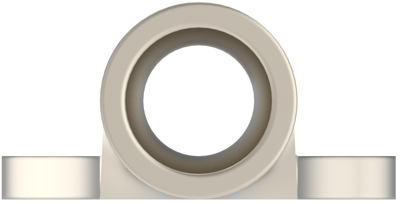

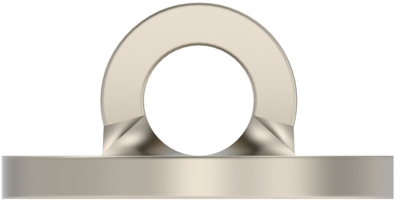

Name: Uninsulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 4.34 mm, M4, metal, 322798
Brand: AMP
SKU: 39P8370
Availability: InStock

Uninsulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 4.34 mm, M4, metal, 322798

Order No.: 39P8370

EAN: 4099889600988

MPN:

322798

Image may differ

Key Specification:

Version ring cable lug

Cable cross-section 0.26-1.65 mm²

AWG cross-section AWG 22 to 16

Isolated No

Colour metal

Show 25 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.9163 € *

Available in 5 Days: 298 pcs. - if ordered today

Total Price:

0.92 € *

Price list

Quantity

Price per unit*

1 pcs.

0.9163 €

10 pcs.

0.8449 €

25 pcs.

0.7973 €

50 pcs.

0.7259 €

*incl. VAT plus shipping costs

Subject to prior sale

Description

Cable lug, 322798, AMP

Regular Wire, Closed Barrel, Offset, #8,M4, 509 – 3260 CMA

Technical Data

Ring cable lug

AWG cross-section AWG 22 to 16
Colour: gray
Material: Kupfer, vernickelt
Cable cross-section 0.26 to 1.65 mm²

Technical specifications

Filter	Property	Value
	Thread size	M4
	AWG cross-section	AWG 22 to 16
	Version	ring cable lug
	Hole diameter	4.34 mm
	Isolated	No
	Cable cross-section	0.26-1.65 mm²
	Colour	metal
	Material	copper, nickel-plated
	max. operating temperature	343 °C
