322771 | AMP
Uninsulated ring cable lug, 0.12-0.4 mm², AWG 26 to 22, 2.36 mm, M2, 322771
Unit Price (€ / pc.)
0.1523 € *
Available in 5 Days: 28,842 pcs. - if ordered today
Total Price:
304.64 € *
Price list
Quantity
Price per unit*
2000 pcs.
0.1523 €
4000 pcs.
0.1333 €
*incl. VAT plus shipping costs
Subject to prior sale

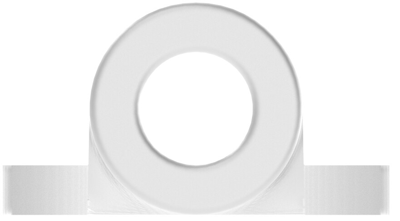

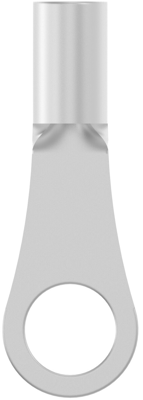

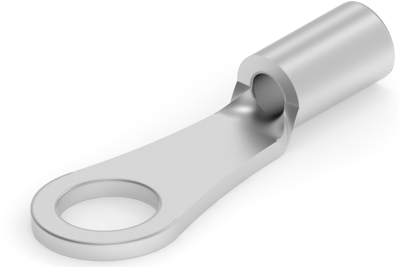

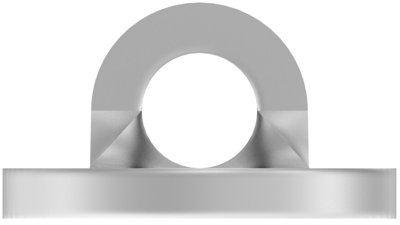

Ring cable lug, 322771, AMP
Ring terminal and Spade terminal, Ring tongue, 26-22 AWG wire size, 0.12-0.4 mm² wire size, 202-810 CMA wire size.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 170 °C | |
| AWG cross-section | AWG 26 to 22 | |
| Material | copper, tin-plated | |
| Isolated | No | |
| Thread size | M2 | |
| Hole diameter | 2.36 mm | |
| shrinkable tubing | No | |
| Version | ring cable lug | |
| Cable cross-section | 0.12-0.4 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
