322727 | AMP

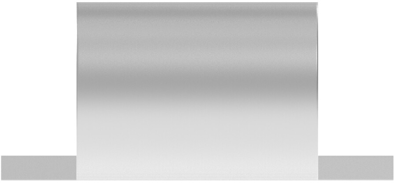

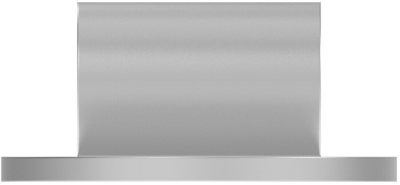

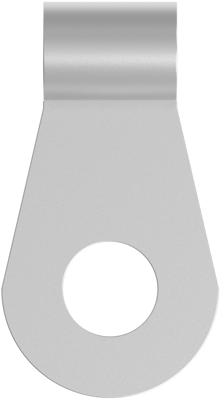

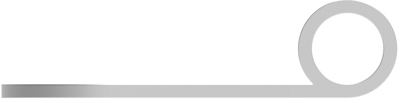

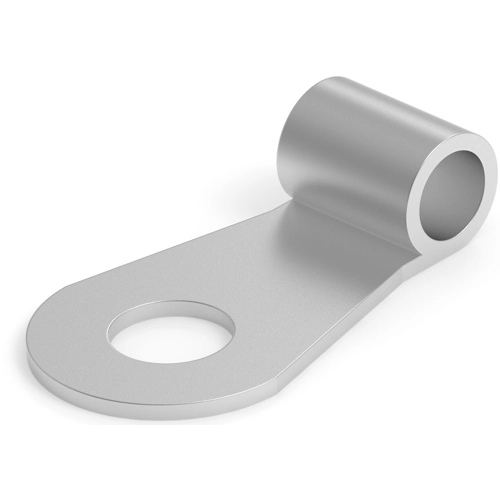

Uninsulated ring cable lug, 6.64-10.54 mm², AWG 8, 6.73 mm, M6, metal, 322727
Order No.: 39P8507
EAN: 4099889601794
MPN:
322727
Unit Price (€ / pc.)
13.3399 € *
Available in 5 Days: 1,083 pcs. - if ordered today
Total Price:
13.34 € *
Price list
Quantity
Price per unit*
1 pcs.
13.3399 €
10 pcs.
12.3879 €
25 pcs.
11.5668 €
50 pcs.
10.5077 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 322727, AMP
Shape Description: RING-091, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 4.953 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Flag Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 8 AWG, Wire Size: 6.64 – 10.54 mm², Wire Size: 13100 – 20800 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| max. operating temperature | 170 °C | |
| Colour | metal | |
| Cable cross-section | 6.64-10.54 mm² | |
| AWG cross-section | AWG 8 | |
| Material | copper, tin-plated | |
| Hole diameter | 6.73 mm | |
| Isolated | No | |
| Thread size | M6 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
