322695 | AMP
Uninsulated ring cable lug, 1.25-2.0 mm², AWG 16 to 14, 5 mm, metal, 322695
Order No.: 39P8427
EAN: 4099889601435
MPN:
322695
Unit Price (€ / pc.)
0.70 € *
Available in 5 Days: 1,186 pcs. - if ordered today
Total Price:
0.70 € *
Price list
Quantity
Price per unit*
1 pcs.
0.70 €
10 pcs.
0.63 €
50 pcs.
0.57 €
100 pcs.
0.51 €
*plus VAT and shipping costs
Subject to prior sale

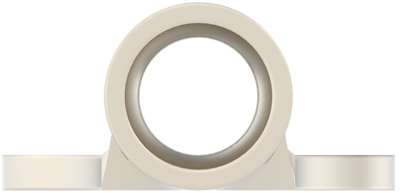

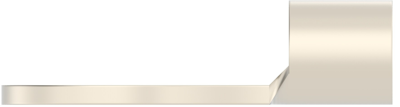

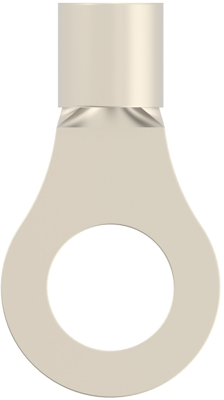

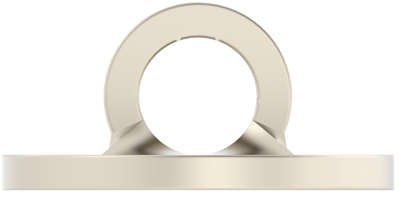

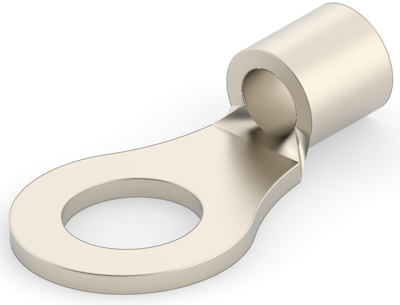

Ring cable lug, 322695, AMP
Shape Description: RING-084, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 2, Terminal Angle: Straight, Weight per Piece: 0.689 g, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 16 – 14 AWG, Wire Size: 1.25 – 2 mm², Wire Size: 2050 – 5180 CMA, Stud Diameter: 5 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 343 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | metal | |
| Material | copper, nickel-plated | |
| AWG cross-section | AWG 16 to 14 | |
| max. operating temperature | 343 °C | |
| Isolated | No | |
| Version | ring cable lug | |
| Cable cross-section | 1.25-2.0 mm² | |
| Hole diameter | 5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
