322451 | AMP

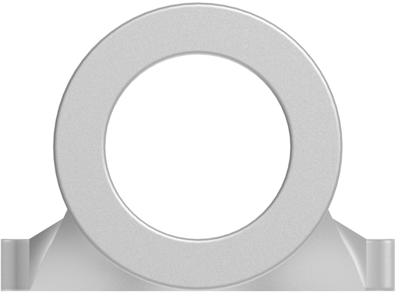

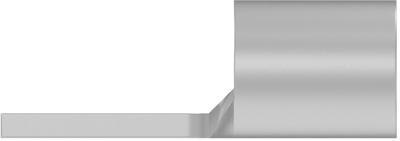

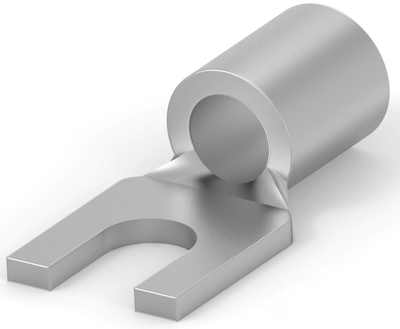

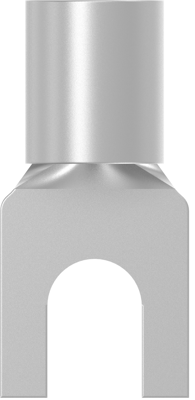

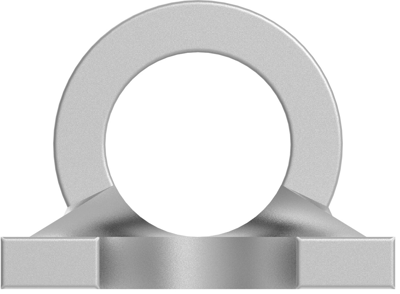

Uninsulated forked cable lug, 3.0-6.0 mm², AWG 12 to 10, M3.5, metal, 322451
Order No.: 39P8744
EAN: 4099889603675
MPN:
322451
Unit Price (€ / pc.)
0.3689 € *
Available in 5 Days: 9,618 pcs. - if ordered today
Fork cable lug, 322451, AMP
Shape Description: SPADE-023, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.576 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Spade Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 12 – 10 AWG, Wire Size: 3 – 6 mm², Wire Size: 5180 – 13100 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 500, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 12 to 10 | |
| Colour | metal | |
| Isolated | No | |
| Cable cross-section | 3.0-6.0 mm² | |
| Thread size | M3.5 | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C | |
| Version | forked cable lug |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
