322386 | AMP
Uninsulated ring cable lug, 13-15 mm², AWG 6, 9.53 mm, metal, 322386
Order No.: 39P8742
EAN: 4099889603651
MPN:
322386
Unit Price (€ / pc.)
2.0468 € *
Standard delivery time from the manufacturer is: 39 Weeks

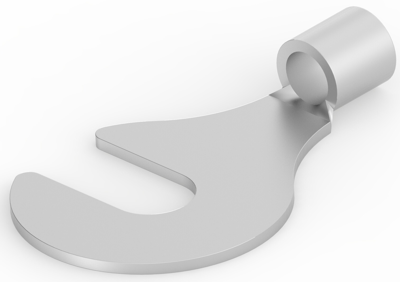

Ring cable lug, 322386, AMP
Terminal Features: Slotted, Ring & Spade Stud Size: 3/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 11.627 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Copper, Wire Insulation Support: Without, Wire Size: 6 AWG, Wire Size: 13 – 15 mm², Wire Size: 20800 – 33100 CMA, Stud Diameter: 9.53 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 100, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| max. operating temperature | 170 °C | |
| Colour | metal | |
| Cable cross-section | 13-15 mm² | |
| AWG cross-section | AWG 6 | |
| Material | copper, tin-plated | |
| Hole diameter | 9.53 mm | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85369040 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
