322367 | AMP

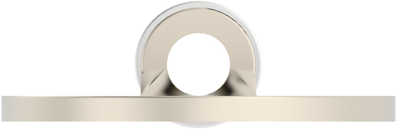

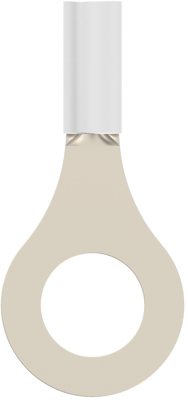

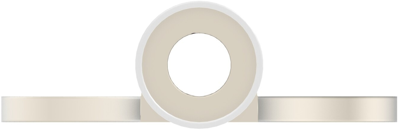

Uninsulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 6.73 mm, M6, metal, 322367
Order No.: 39P2212
EAN: 4099889590852
MPN:
322367
Unit Price (€ / pc.)
1.7255 € *
Available in 5 Days: 6,072 pcs. - if ordered today
Ring cable lug, 322367, AMP
Shape Description: RING-085, Ring & Spade Stud Size: M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 1.298 g, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: 0.26 – 1.65 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 6.73 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 343 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| Cable cross-section | 0.26-1.65 mm² | |
| max. operating temperature | 343 °C | |
| Isolated | No | |
| Hole diameter | 6.73 mm | |
| Material | copper, nickel-plated | |
| AWG cross-section | AWG 22 to 16 | |
| Colour | metal | |
| Thread size | M6 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
