322366 | AMP

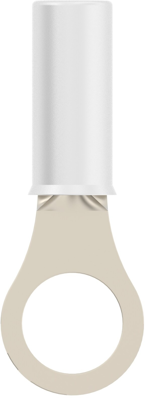

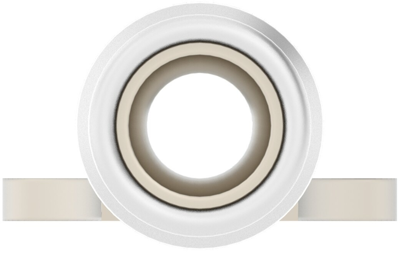

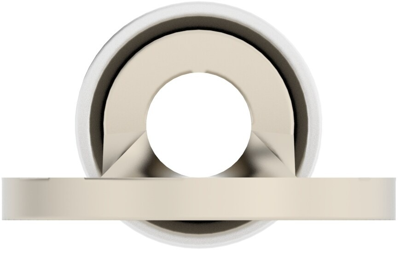

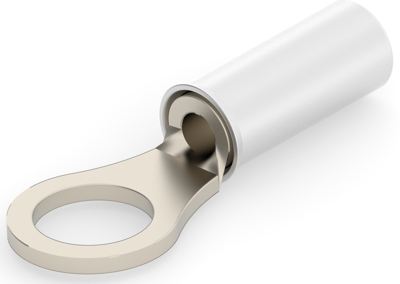

Uninsulated ring cable lug, 0.26-1.65 mm², AWG 22 to 16, 5 mm, metal, 322366
Order No.: 39P2213
EAN: 4099889590869
MPN:
322366
Unit Price (€ / pc.)
1.5351 € *
Available in 5 Days: 2,677 pcs. - if ordered today
Total Price:
1.54 € *
Price list
Quantity
Price per unit*
1 pcs.
1.5351 €
10 pcs.
1.4280 €
25 pcs.
1.3328 €
50 pcs.
1.2138 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 322366, AMP
Shape Description: RING-085, Ring & Spade Stud Size: #10, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 10 g, Ring & Spade Plating Material: Copper,Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: .26 – 1.65 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 5 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 343 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 to 16 | |
| Hole diameter | 5 mm | |
| Colour | metal | |
| max. operating temperature | 343 °C | |
| Cable cross-section | 0.26-1.65 mm² | |
| Material | copper, nickel-plated | |
| Version | ring cable lug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
