322307 | AMP

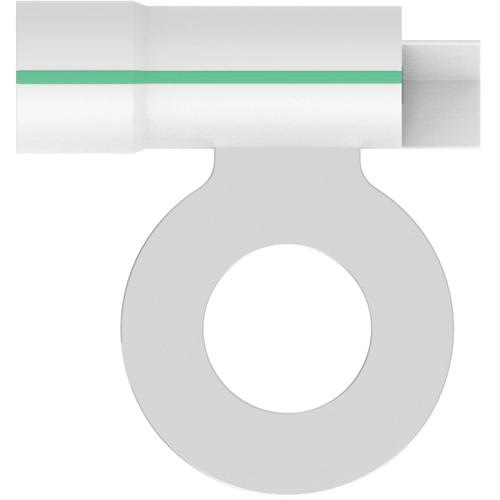

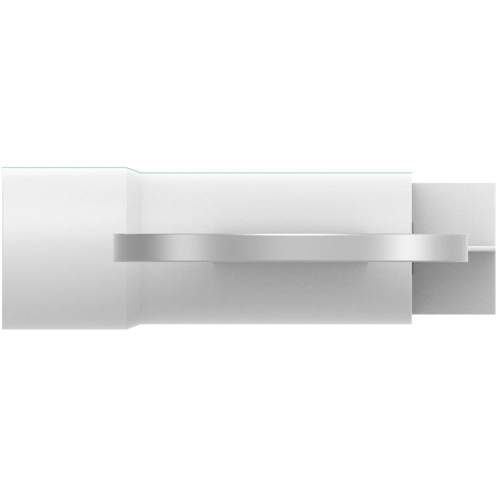

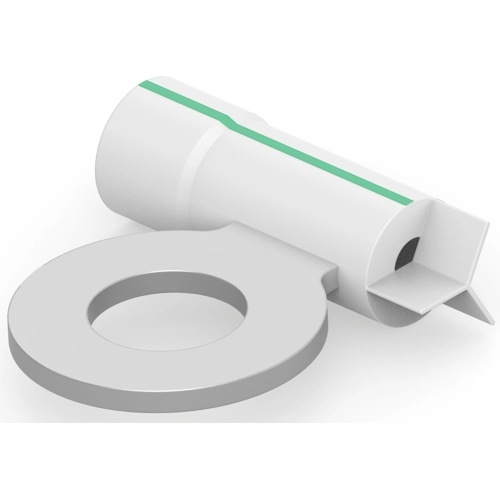

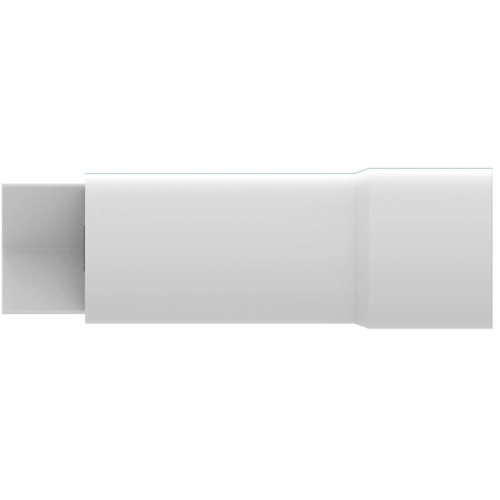

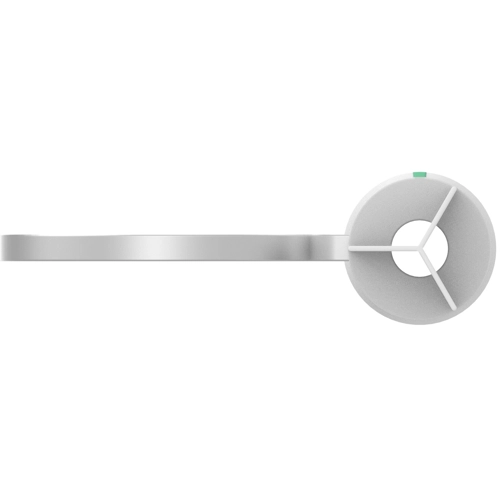

Insulated ring cable lug, 0.5-1.4 mm², AWG 20 to 16, 6.14 mm, green, 322307
Unit Price (€ / pc.)
2.9988 € *
Available in 5 Days: 808 pcs. - if ordered today
Ring cable lug, 322307, AMP
Shape Description: RING-058, Ring & Spade Stud Size: #14, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: Yes, Number of Holes: 1, Terminal Angle: Straight, Voltage (Max): 600 V, Weight per Piece: 1.725 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Flag Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: With, Wire Size: 20 – 16 AWG, Wire Size: 0.5 – 1.4 mm², Wire Size: 810 – 3260 CMA, Stud Diameter: 6.14 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 105 °C, Heavy Duty: Yes, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Box, Comment: Heavy Duty for extra mechanical strength
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| Cable cross-section | 0.5-1.4 mm² | |
| AWG cross-section | AWG 20 to 16 | |
| Isolated | Yes | |
| Colour | green | |
| Material | copper, tin-plated | |
| Material Insulation | vinyl | |
| Hole diameter | 6.14 mm | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
