322228 | AMP

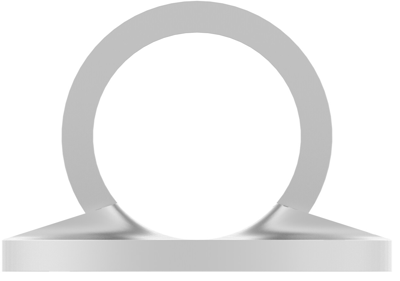

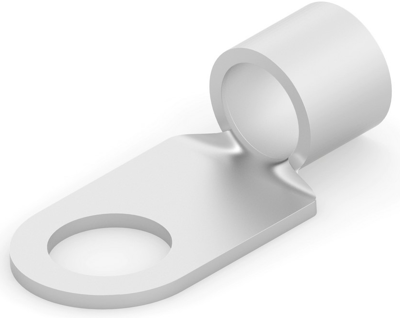

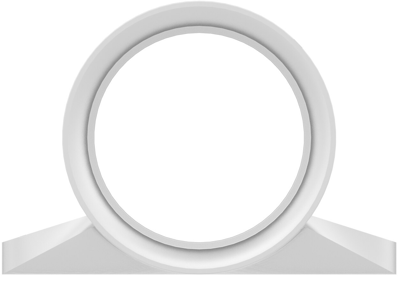

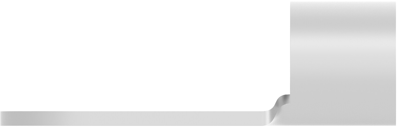

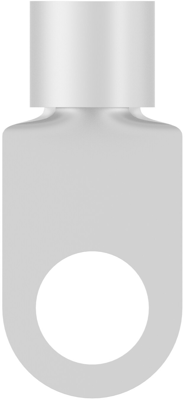

Uninsulated ring cable lug, 100-125 mm², AWG 4, 19.05 mm, metal, 322228
Order No.: 39P8276
EAN: 4099889600438
MPN:
322228
Unit Price (€ / pc.)
28.5600 € *
Available in 5 Days: 235 pcs. - if ordered today
Total Price:
28.56 € *
Price list
Quantity
Price per unit*
1 pcs.
28.5600 €
5 pcs.
27.0844 €
10 pcs.
25.3351 €
25 pcs.
23.0979 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 322228, AMP
Shape Description: RING-049, Ring & Spade Stud Size: 3/4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 2, Terminal Angle: Straight, Weight per Piece: 57.289 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 0000 AWG, Wire Size: 100 – 125 mm², Wire Size: 190000 – 231100 CMA, Stud Diameter: 19.05 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| max. operating temperature | 170 °C | |
| Colour | metal | |
| Cable cross-section | 100-125 mm² | |
| AWG cross-section | AWG 4 | |
| Material | copper, tin-plated | |
| Hole diameter | 19.05 mm | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
