322224 | AMP
Uninsulated ring cable lug, 67-70 mm², AWG 2, 15.88 mm, M16, metal, 322224
Order No.: 39P8261
EAN: 4099889600315
MPN:
322224
Unit Price (€ / pc.)
24.1808 € *
Available: 0 pcs.
Leadtime: 32 Weeks **
Total Price:
24.18 € *
Price list
Quantity
Price per unit*
1 pcs.
24.1808 €
10 pcs.
22.2411 €
25 pcs.
20.0158 €
50 pcs.
18.0166 €
*incl. VAT plus shipping costs
**Subject to prior sale

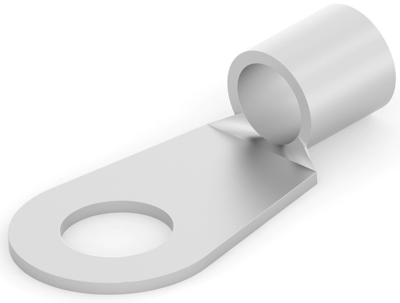

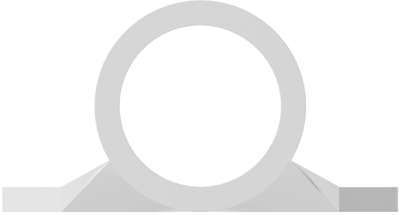

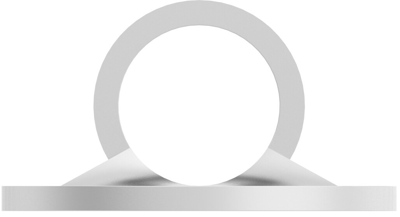

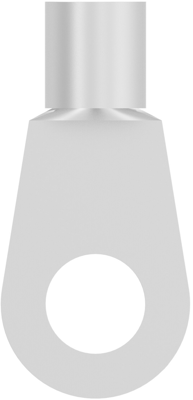

Ring cable lug, 322224, AMP
Shape Description: RING-049, Ring & Spade Stud Size: 5/8,M16, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 2, Terminal Angle: Straight, Weight per Piece: 46.748 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 00 AWG, Wire Size: 67 – 70 mm², Wire Size: 119500 – 150500 CMA, Stud Diameter: 15.88 mm, Tongue Thickness: 0.79 mm, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Colour | metal | |
| Isolated | No | |
| AWG cross-section | AWG 2 | |
| Hole diameter | 15.88 mm | |
| Cable cross-section | 67-70 mm² | |
| Version | ring cable lug | |
| Material | copper, tin-plated | |
| max. operating temperature | 170 °C | |
| Thread size | M16 |
Download
Logistics
| Country of origin | TW |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
