322222 | AMP

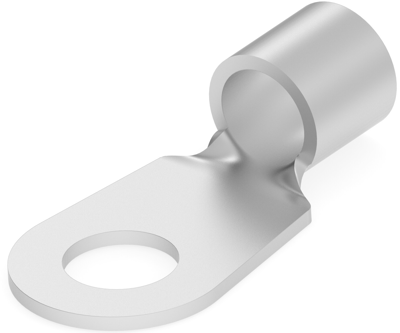

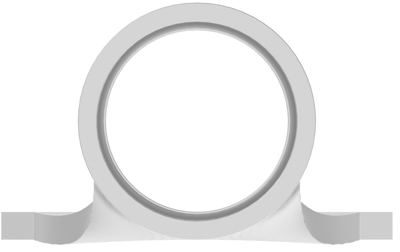

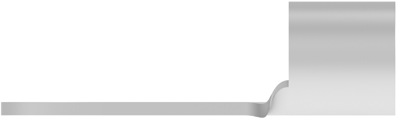

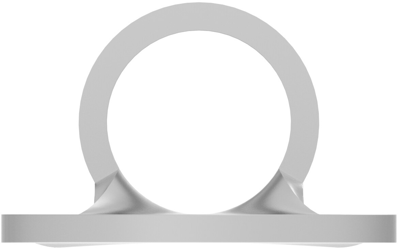

Uninsulated ring cable lug, 80-95 mm², AWG 7, 15.88 mm, metal, 322222
Order No.: 39P8270
EAN: 4099889600377
MPN:
322222
Unit Price (€ / pc.)
41.8285 € *
Available in 5 Days: 709 pcs. - if ordered today
Total Price:
41.83 € *
Price list
Quantity
Price per unit*
1 pcs.
41.8285 €
5 pcs.
39.6627 €
10 pcs.
37.1042 €
25 pcs.
33.8317 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 322222, AMP
Shape Description: RING-049, Ring & Spade Stud Size: 5/8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 2, Terminal Angle: Straight, Weight per Piece: 48.928 g, Ring & Spade Plating Material: Copper,Tin, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Copper, Wire Insulation Support: Without, Wire Size: 000 AWG, Wire Size: 80 – 95 mm², Wire Size: 150500 – 190000 CMA, Stud Diameter: 15.88 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| max. operating temperature | 170 °C | |
| Colour | metal | |
| Cable cross-section | 80-95 mm² | |
| AWG cross-section | AWG 7 | |
| Material | copper, tin-plated | |
| Hole diameter | 15.88 mm | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | JP |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
