321895-1 | AMP
Uninsulated ring cable lug, 0.3-1.42 mm², AWG 22 to 18, 4.34 mm, M4, 321895-1
Order No.: 71P7856
EAN: 4099891603625
MPN:
321895-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
6.4974 € *
Available in 5 Days: 929 pcs. - if ordered today
Total Price:
6.50 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4974 €
10 pcs.
6.0333 €
25 pcs.
5.6287 €
50 pcs.
5.1170 €
*incl. VAT plus shipping costs
Subject to prior sale

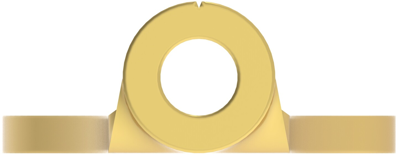

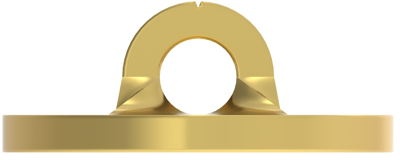

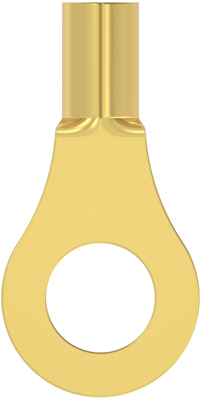

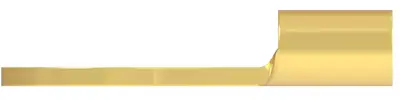

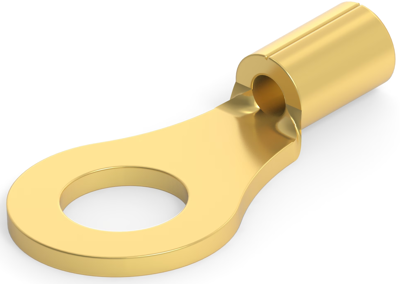

Ring cable lug, 321895-1, AMP
Ring terminal, Ring tongue, 22 - 18 AWG Wire size, 0.3 - 1.42 mm² Wire size, 509 - 3260 CMA Wire size, Stud size M4 / #8.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| Cable cross-section | 0.3-1.42 mm² | |
| AWG cross-section | AWG 22 to 18 | |
| Isolated | No | |
| Material | nickel | |
| shrinkable tubing | No | |
| Hole diameter | 4.34 mm | |
| Thread size | M4 | |
| max. operating temperature | 260 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
