321889 | AMP

Uninsulated ring cable lug, 0.3-1.42 mm², AWG 22 to 16, 3.68 mm, M3.5, metal, 321889

Order No.: 39P8378
EAN: 4099889601053
MPN:
321889

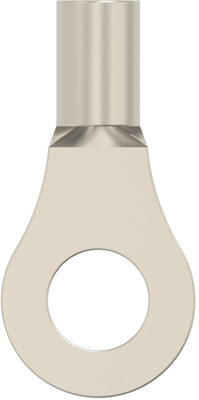

321889 AMP Cable Lugs Image 1

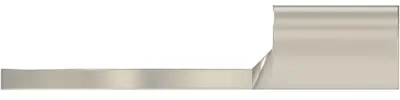

321889 AMP Cable Lugs Image 2

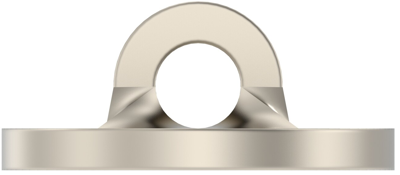

321889 AMP Cable Lugs Image 3

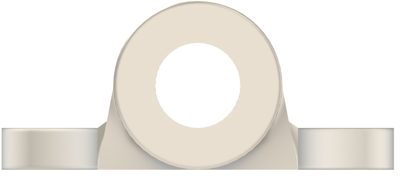

321889 AMP Cable Lugs Image 4

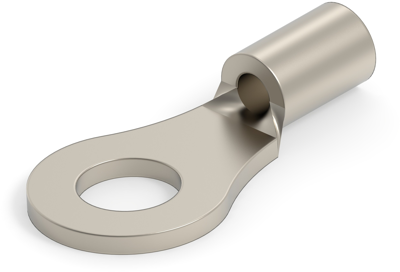

321889 AMP Cable Lugs Image 5
Image may differ
Unit Price (€ / pc.)
2.8560 € *
Available: 0 pcs.
Available in 5 Days: 500 pcs.
Leadtime: 39 Weeks **
Total Price:
2.86 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8560 €
10 pcs.
2.6180 €
50 pcs.
2.3562 €
100 pcs.
2.1301 €
*incl. VAT plus shipping costs
**Subject to prior sale

Cable lug, 321889, AMP

Shape Description: RING-054, Ring & Spade Stud Size: #6,M3.5, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: .878 g, Ring & Spade Plating Material: Nickel,Unplated, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 22 – 16 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.68 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 649 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece

Technical specifications
AWG cross-section AWG 22 to 16
Thread size M3.5
Cable cross-section 0.3-1.42 mm²
Material nickel
Version ring cable lug
Isolated No
Hole diameter 3.68 mm
Colour metal
max. operating temperature 649 °C
Logistics
Customs tariff number 85369095
Country of origin IN
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
