321887 | AMP

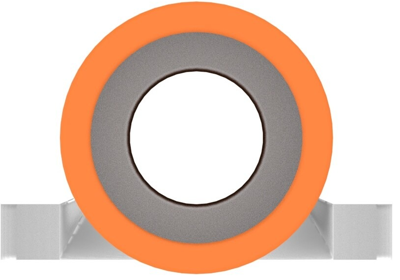

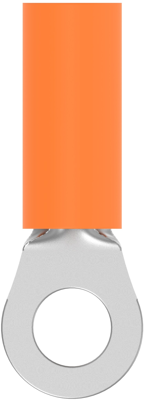

Uninsulated ring cable lug, 0.3-1.42 mm², AWG 22 to 16, 3.02 mm, orange, 321887
Order No.: 39P2208
EAN: 4099889590814
MPN:
321887
Unit Price (€ / pc.)
2.2729 € *
Available in 5 Days: 502 pcs. - if ordered today
Cable lug, 321887, AMP
Shape Description: RING-053, Ring & Spade Stud Size: #4, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Insulation Sleeve Color: Orange, Ring & Spade Plating Material: Nickel, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: With, Wire Size: 22 – 16 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.02 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 649 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 22 to 16 | |
| Colour | orange | |
| Isolated | No | |
| Cable cross-section | 0.3-1.42 mm² | |
| Material | nickel | |
| max. operating temperature | 649 °C | |
| Version | ring cable lug | |
| Hole diameter | 3.02 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
