321885 | AMP

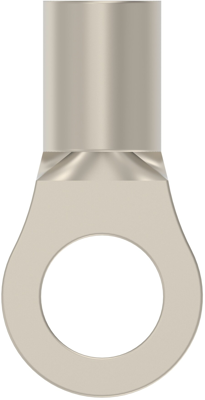

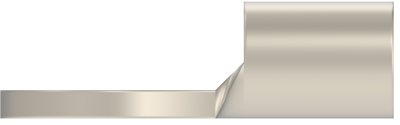

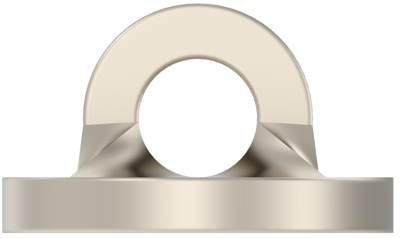

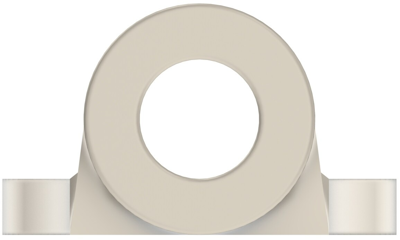

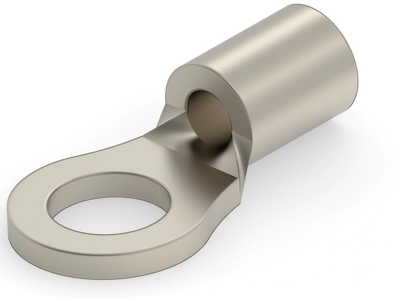

Uninsulated ring cable lug, 0.3-1.42 mm², AWG 22 to 16, 3.35 mm, M3, metal, 321885
Order No.: 39P8374
EAN: 4099889601022
MPN:
321885
Unit Price (€ / pc.)
1.5708 € *
Available in 5 Days: 750 pcs. - if ordered today
Cable lug, 321885, AMP
Shape Description: RING-054, Ring & Spade Stud Size: #5,M3, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 10 g, Ring & Spade Plating Material: Nickel,Unplated, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 22 – 16 AWG, Wire Size: .3 – 1.42 mm², Wire Size: 509 – 3260 CMA, Stud Diameter: 3.35 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 649 °C, Heavy Duty: No, Government Qualified: No, Packaging Quantity: 1000, Ring & Spade Packaging Method: Box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| Hole diameter | 3.35 mm | |
| max. operating temperature | 649 °C | |
| Isolated | No | |
| Cable cross-section | 0.3-1.42 mm² | |
| Thread size | M3 | |
| Colour | metal | |
| Material | nickel | |
| AWG cross-section | AWG 22 to 16 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
