321876 | AMP

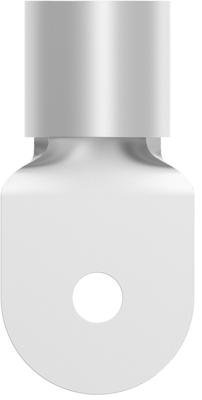

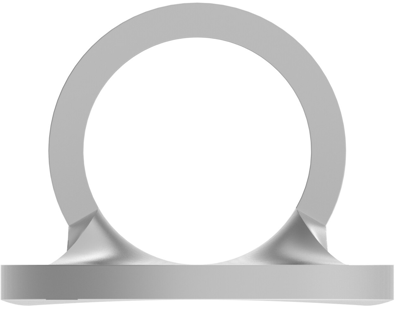

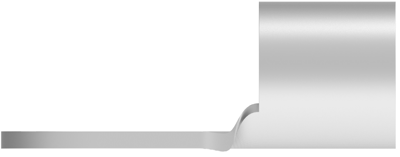

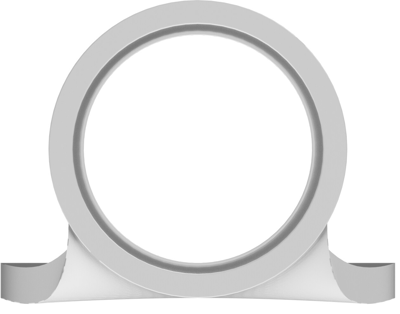

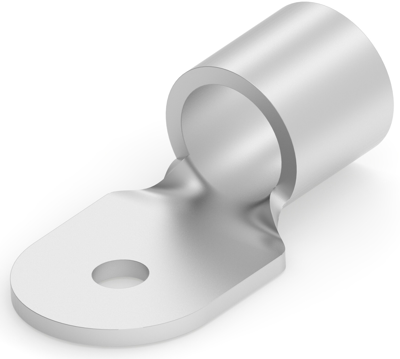

Uninsulated ring cable lug, 80-95 mm², AWG 9, 11.51 mm, metal, 321876
Order No.: 39P8271
EAN: 4099889600384
MPN:
321876
Unit Price (€ / pc.)
21.7651 € *
Available in 5 Days: 1,162 pcs. - if ordered today
Total Price:
21.77 € *
Price list
Quantity
Price per unit*
1 pcs.
21.7651 €
2 pcs.
20.3609 €
5 pcs.
19.1352 €
10 pcs.
17.7786 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 321876, AMP
Shape Description: RING-051, Ring & Spade Stud Size: 7/16, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 2, Terminal Angle: Straight, Weight per Piece: 23.902 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Underplating Material: Copper, Wire Insulation Support: Without, Wire Size: 000 AWG, Wire Size: 80 – 95 mm², Wire Size: 150500 – 190000 CMA, Stud Diameter: 11.51 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 9 | |
| Hole diameter | 11.51 mm | |
| Colour | metal | |
| max. operating temperature | 170 °C | |
| Cable cross-section | 80-95 mm² | |
| Material | copper, tin-plated | |
| Version | ring cable lug | |
| Isolated | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
