321867 | AMP

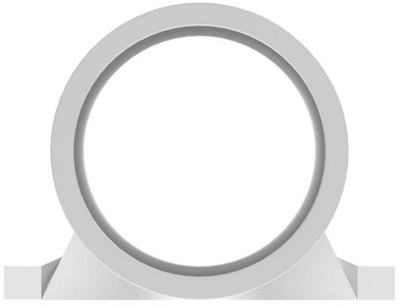

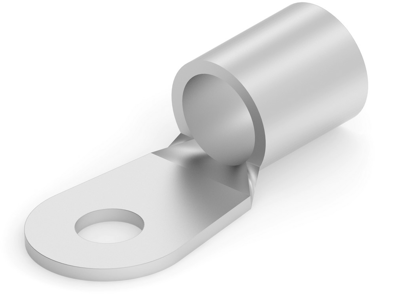

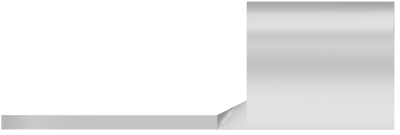

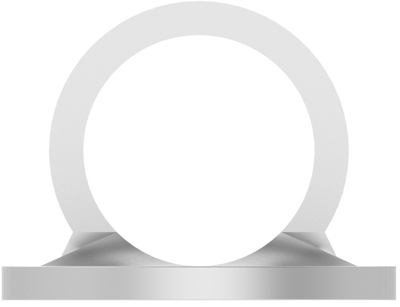

Uninsulated ring cable lug, 42.4-60.6 mm², AWG 1, 8.33 mm, M8, metal, 321867
Order No.: 39P8227
EAN: 4099889600056
MPN:
321867
Unit Price (€ / pc.)
7.9135 € *
Available in 5 Days: 2,634 pcs. - if ordered today
Total Price:
7.91 € *
Price list
Quantity
Price per unit*
1 pcs.
7.9135 €
10 pcs.
7.3542 €
25 pcs.
6.8663 €
50 pcs.
6.2356 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable lug, 321867, AMP
Shape Description: RING-049, Ring & Spade Stud Size: 5/16,M8, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: .127 g, Ring & Spade Plating Material: Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Straight, Wire Insulation Support: Without, Wire Size: 0 AWG, Wire Size: 42.4 – 60.6 mm², Wire Size: 83700 – 118500 CMA, Stud Diameter: 8.33 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 50, Ring & Spade Packaging Method: Loose Piece
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| max. operating temperature | 170 °C | |
| Colour | metal | |
| Cable cross-section | 42.4-60.6 mm² | |
| AWG cross-section | AWG 1 | |
| Material | copper, tin-plated | |
| Hole diameter | 8.33 mm | |
| Isolated | No | |
| Thread size | M8 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
