321867-1 | AMP

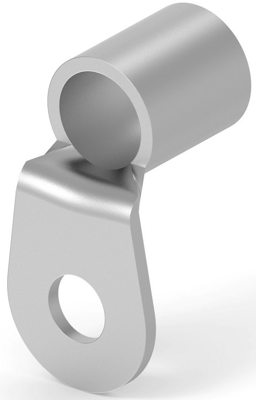

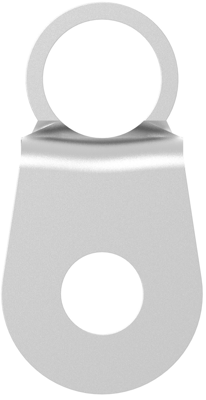

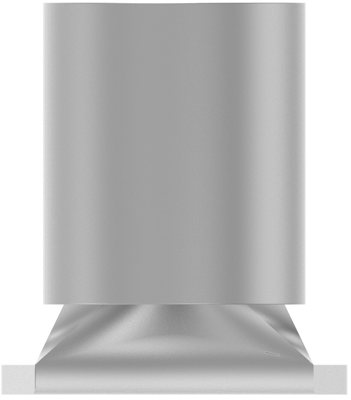

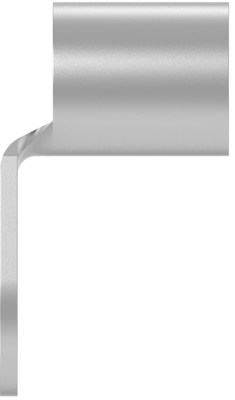

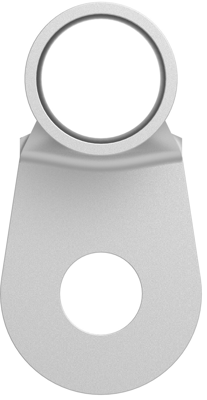

Uninsulated ring cable lug, 41-60 mm², AWG 1, 8.33 mm, metal, 321867-1
Order No.: 39P8215
EAN: 4099889599947
MPN:
321867-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
6.9853 € *
Available in 5 Days: 9,350 pcs. - if ordered today
Total Price:
6.99 € *
Price list
Quantity
Price per unit*
1 pcs.
6.9853 €
5 pcs.
6.6283 €
10 pcs.
6.1999 €
25 pcs.
5.6525 €
*incl. VAT plus shipping costs
Subject to prior sale
Ring tongue terminal, 321867-1, AMP
Ring tongue terminal, Wire size: 41 - 60 mm², Wire size: 83700 - 119500 CMA, Stud size: 5/16, M8
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | ring cable lug | |
| Cable cross-section | 41-60 mm² | |
| AWG cross-section | AWG 1 | |
| Isolated | No | |
| Colour | metal | |
| Material | copper, tin-plated | |
| Hole diameter | 8.33 mm | |
| max. operating temperature | 105 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
