321866 | AMP
Uninsulated ring cable lug, 41-60 mm², AWG 1, 6.35 mm, M6, metal, 321866
Order No.: 39P8196
EAN: 4099889599794
MPN:
321866
Unit Price (€ / pc.)
5.8786 € *
Available in 5 Days: 4,764 pcs. - if ordered today
Total Price:
5.88 € *
Price list
Quantity
Price per unit*
1 pcs.
5.8786 €
10 pcs.
5.4621 €
25 pcs.
5.0932 €
50 pcs.
4.6291 €
*incl. VAT plus shipping costs
Subject to prior sale

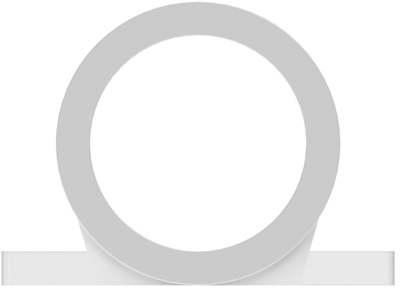

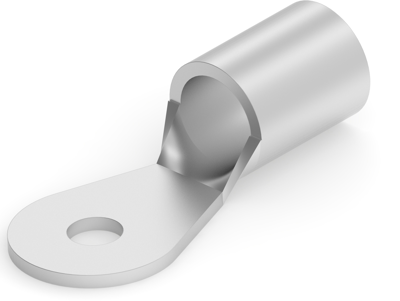

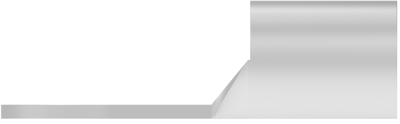

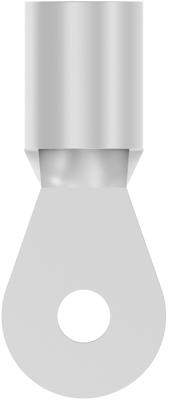

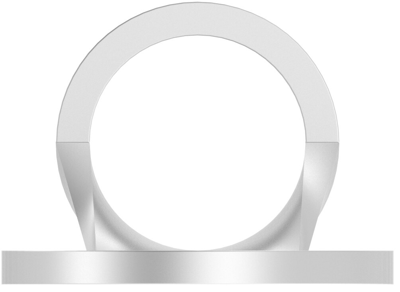

Cable lug, 321866, AMP
Shape Description: RING-049, Ring & Spade Stud Size: 1/4,M6, Ring & Spade Barrel Type: Closed Barrel, Sealable: No, Insulated: No, Number of Holes: 1, Terminal Angle: Straight, Weight per Piece: 23.45 g, Ring & Spade Plating Material: Copper,Tin, Military Part Class: Class II, Terminal & Splice Type: Ring Tongue, Ring & Spade Terminal Orientation: Offset, Wire Insulation Support: Without, Wire Size: 0 AWG, Wire Size: 41 – 60 mm², Wire Size: 83700 – 119500 CMA, Stud Diameter: 6.35 mm, Tongue Thickness: .79 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 170 °C, Heavy Duty: No, Government Qualified: Yes, Packaging Quantity: 50, Ring & Spade Packaging Method: Box
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Hole diameter | 6.35 mm | |
| Cable cross-section | 41-60 mm² | |
| Colour | metal | |
| Material | copper, tin-plated | |
| AWG cross-section | AWG 1 | |
| Isolated | No | |
| max. operating temperature | 170 °C | |
| Version | ring cable lug | |
| Thread size | M6 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
